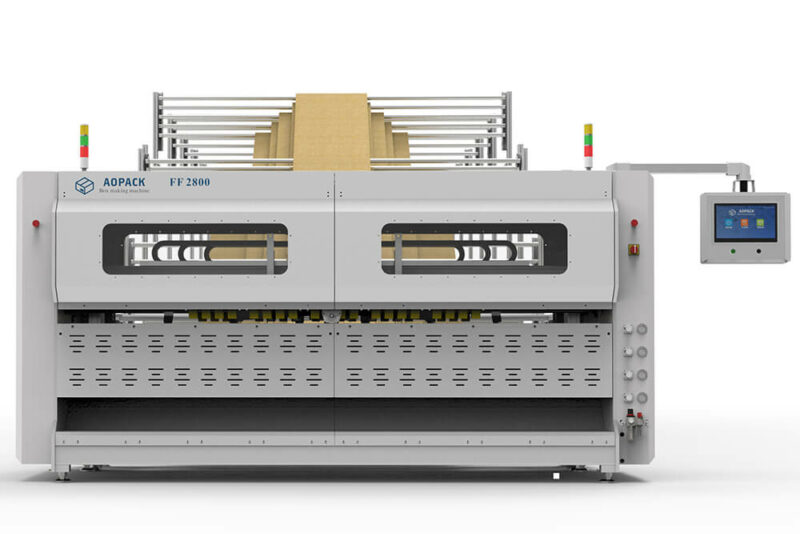

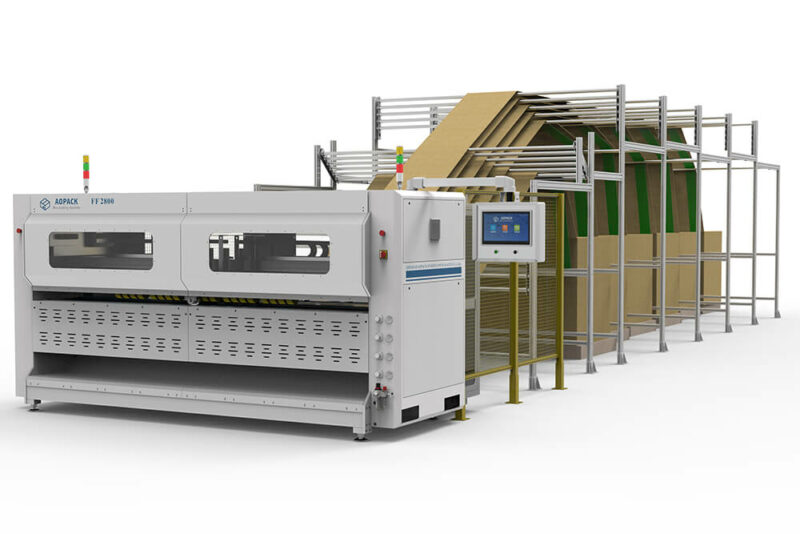

Fanfold Cardboard Box Making Machine FF2800
Fanfold Cardboard Box Making Machine FF2800

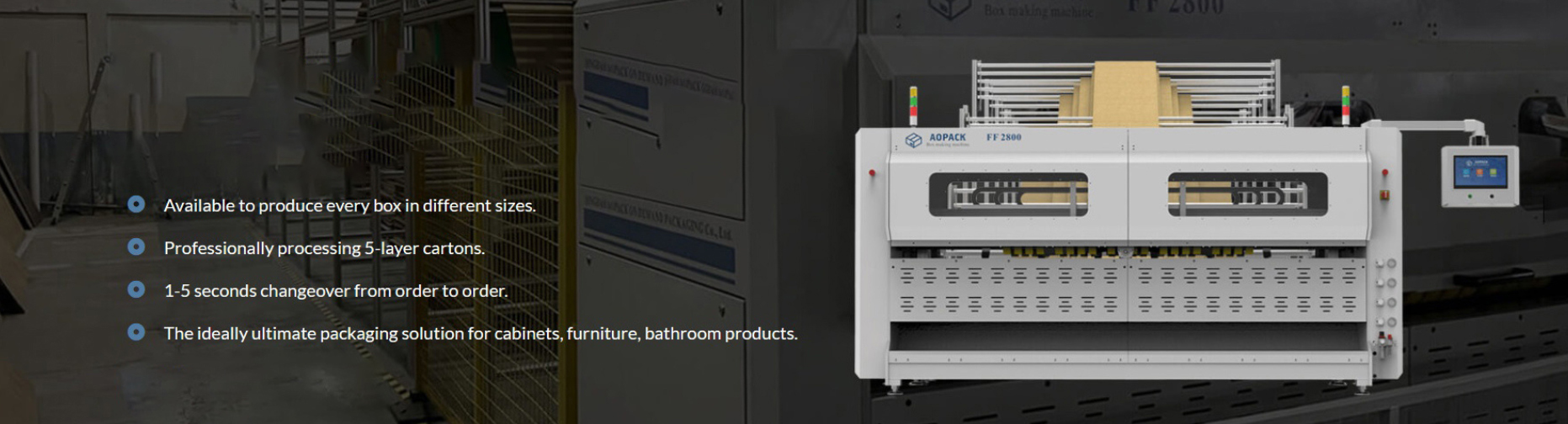

AOPACK fanfold cardboard box making machine FF2800 is a new generation product. This machine is available to use of maximum 6 different fanfold sheets to produce corrugated boxes, with multi functions, slotting, scoring, creasing, slitting and and trimming, all processing in one compact machine.
FF2800 provides one-stop carton solutions for customized product packaging, allowing box users to realize box freedom, self-sufficiency, production at any time, and packaging accompanying production.

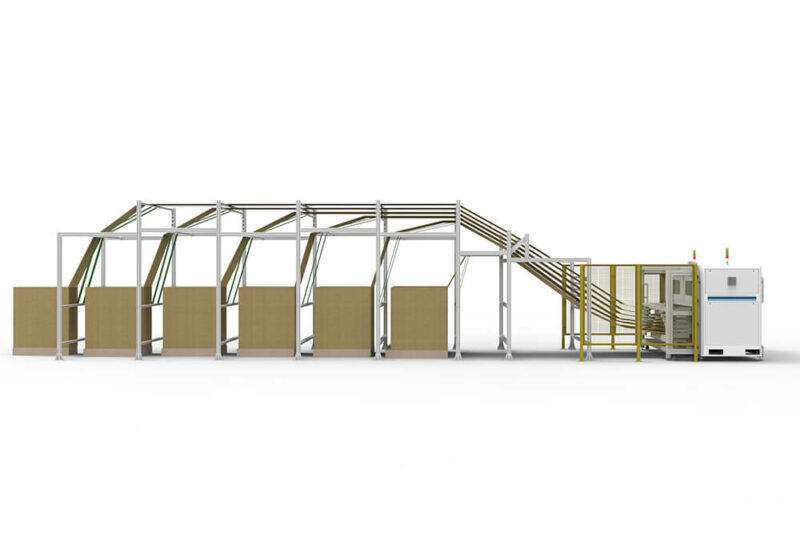

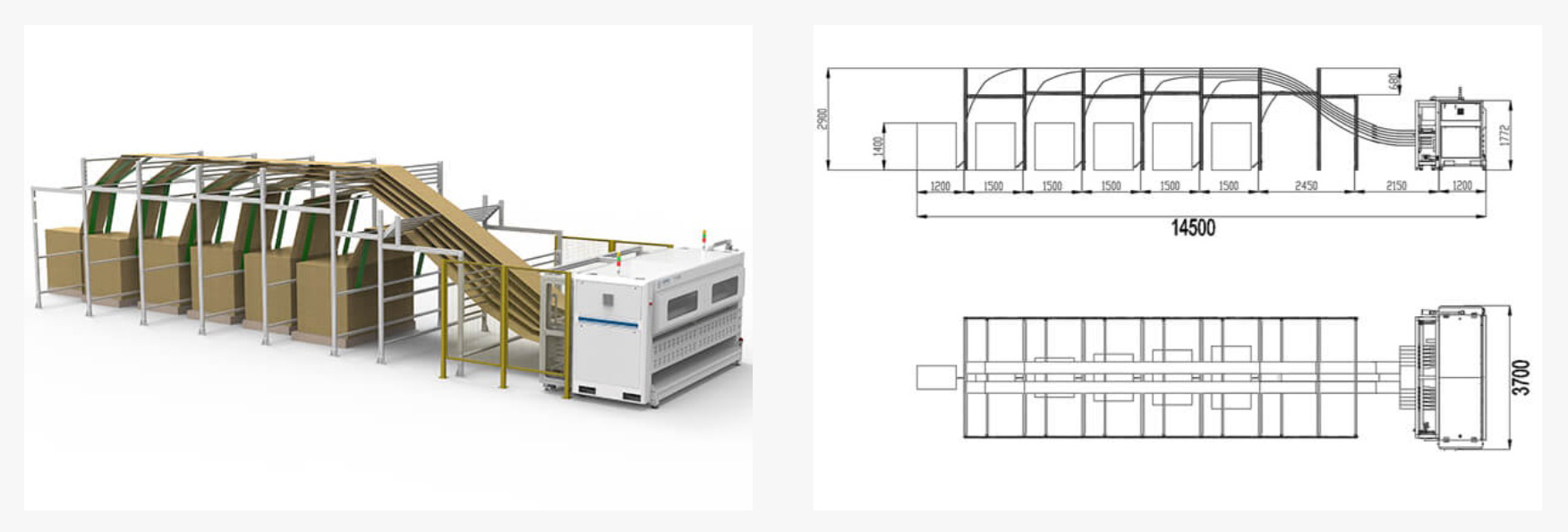

Fanfold Cardboard Box Making Machine FF2800 Layout
L*W*H: 14.5m*3.7m*2.9m（Box making machine with six fanfold board stacks）；
L*W*H: 3.7m*1.2m*1.78m (Box making machine)
Fanfold Cardboard Box Making Machine FF2800 Specification
| Available Cardboard Type | Sheet or Fanfold (3 / 5 / 7 Ply) |
| Available Cardboard Thickness | 1.5-10mm (E / B / C / AB/ BC / BE / BCE flute) |
| Cardboard Density Range | ≤1350g/㎡ |
| Max. Board Size | 2800mm(W) x unlimited(L) |
| Min. Board Size | 500mm(W) x 650mm(L) |
| Changeover Time | 1-5 Seconds |
| Accuracy | ±2mm |
| Box Styles | 50+ |
| Production Speed (Same Dimension) | 6-12pcs/min |
| Production Speed (Different Dimension) | 3-6pcs/min |
| Vertical Creasing Wheels | 6 |
| Vertical Slitting Knives | 6 |
| Horizontal Cutting Knives | 1 or 2 |
| Power Supply | 380V±10%, Max.5.5kW, 50/60Hz |
| Air Supply | 0.6-0.7 MPa, Air Consumption 70L/min |
| Dimension | 3700(W) x 1200(L) x 2030mm(H) |
| Gross Weight | Appr. 3100kg |
| Corrugated Bales | 1-6 |
| The final interpretation right belongs to Qingdao Aopack on Demand Packaging Co., Ltd. | |

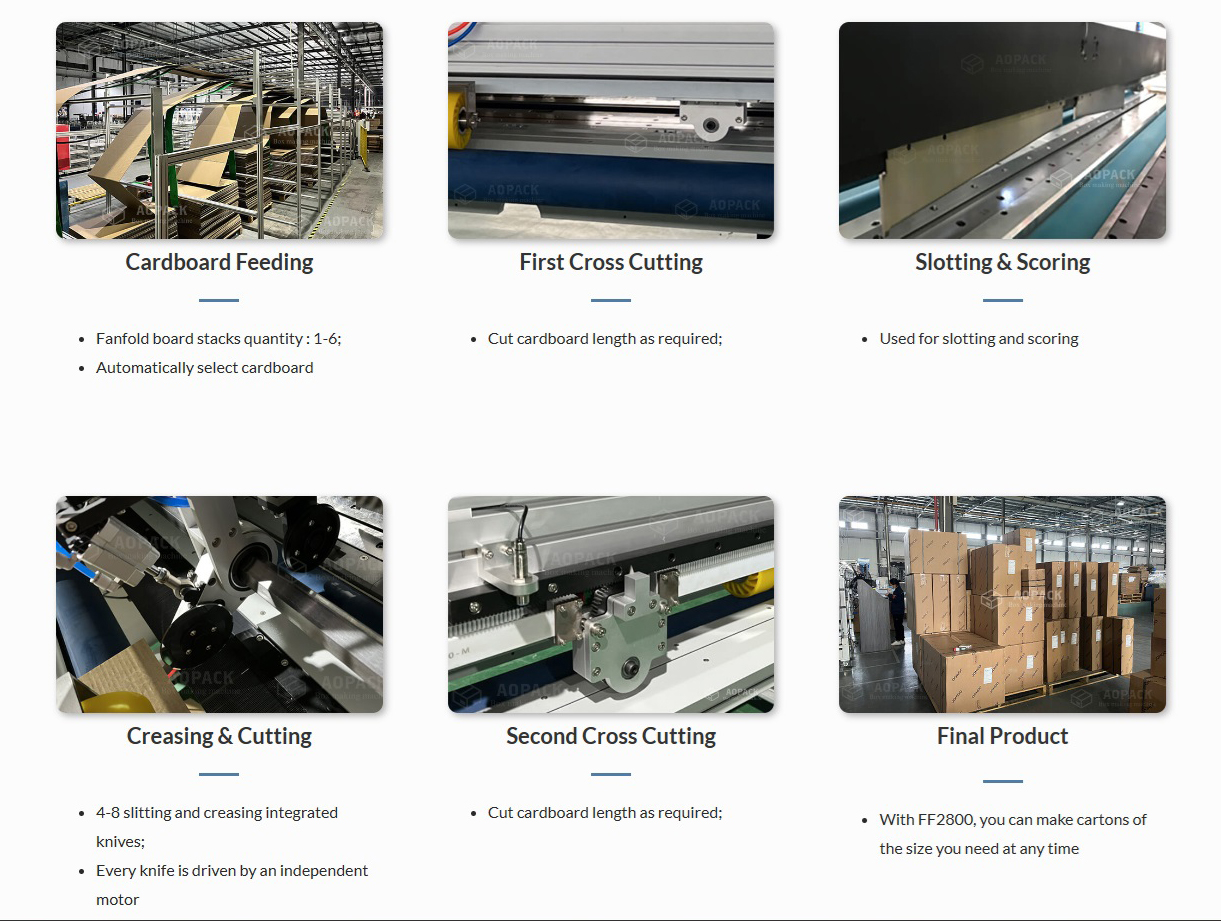

Major Functions Of Fanfold Cardboard Box Making Machine FF2800

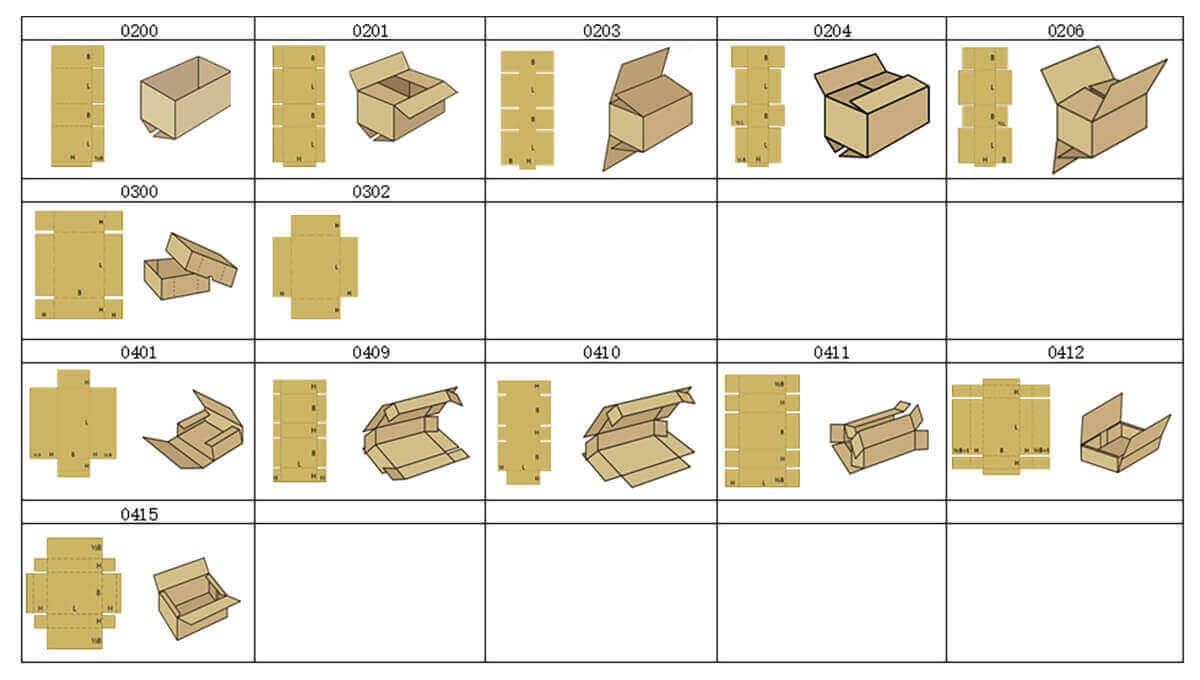

Aopack FF2800 Basic Box Styles

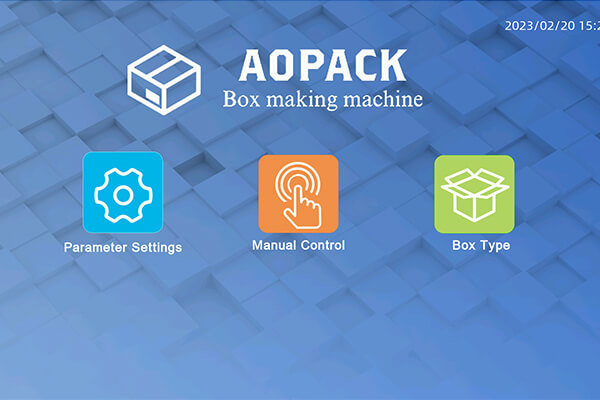

Aopack FF2800 Operation System
Self-designed operating system, free of charge for customers to add new box type, docking scan code, MES, ERP and other services;
Provide order processing software to realize functions such as automatic processing and form import;
Adopt 15.6-inches super large touch screen, good visual effect and convenient operation;

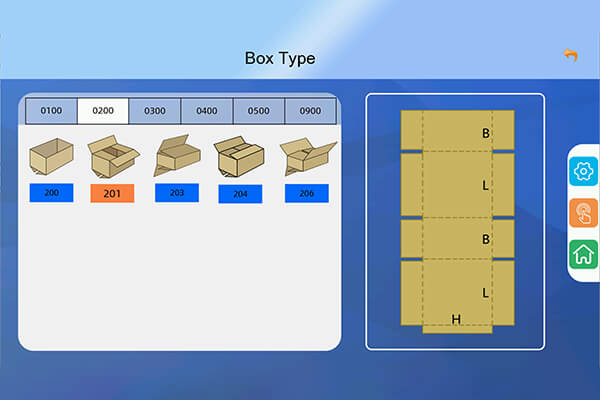

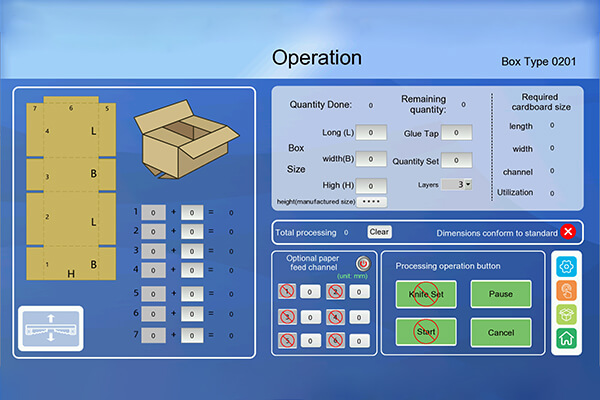

Just select the box type and input the size to process the carton directly.
