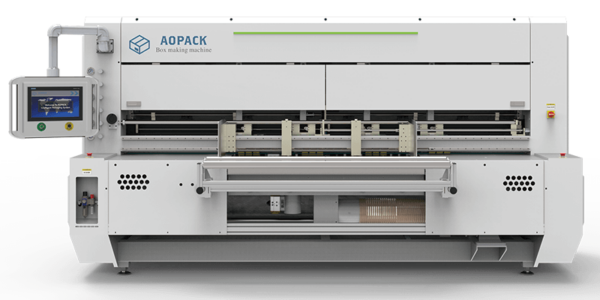

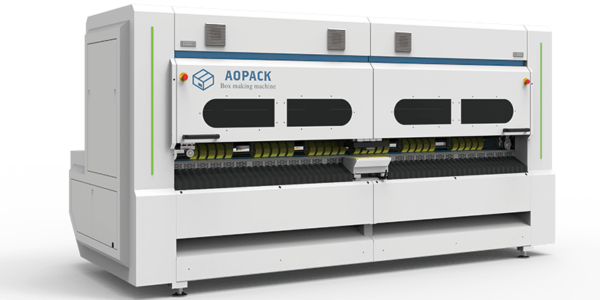

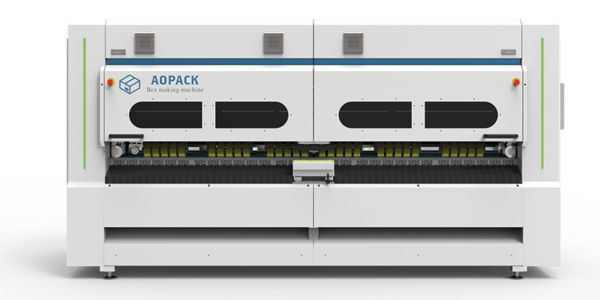

Heavy Duty Box Maker Machine BM3000-HD
Heavy Duty Box Maker Machine BM3000-HD
BM3000-HD is a fully automatic slitting, creasing, slotting, and gluing, all in one compact machine. Specialized in low to medium volume heavy duty box production. It can process sheets from E flute to AAA flute. Slotting width from 7mm to 15mm, Excellent cutting performance without any burrs.

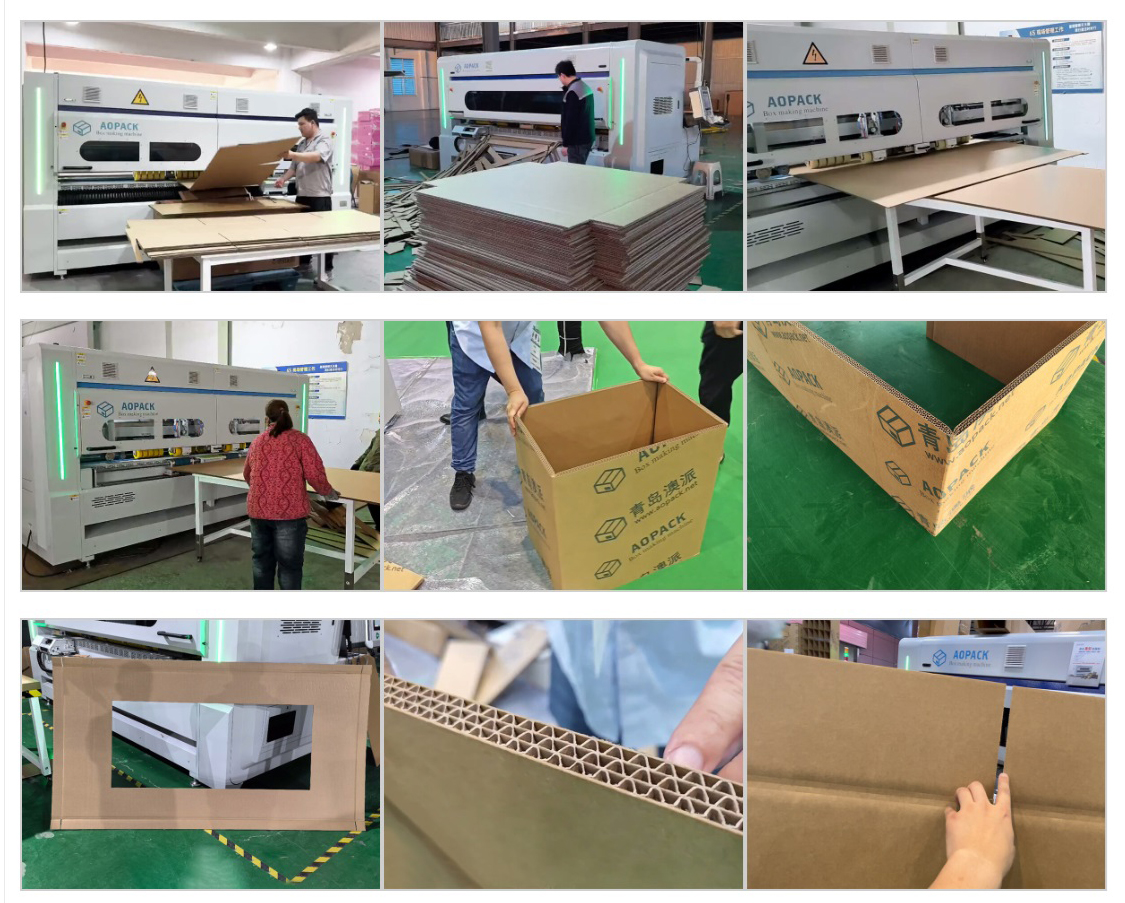

Pictures
Heavy Duty Box Maker Machine BM3000-HD Specification
| Model | BM3000 HD |
| Corrugated Board Type | Sheets (Single , Double，Triple wall) |
| Cardboard Thickness | 2-16mm |
| Cardboard Density Range | Up to 2400g/m² |
| Max.board Size | 3000mm width x unlimited length |
| Min.board Size | 300mm width x 650mm length |
| Production Capacity | Appr.10-16 pcs/minute |
| Depends on size and box style. | |
| Slotting Knife | 2 pcs *500mm Length |
| Vertical Slitting Knife | 4 |
| Vertical Creasing Wheel | 4+4 |
| Cross Cutting Knife | 1 |
| Power Supply | 380V±10%，Max. 10kW, 50/60 Hz |
| Air Pressure | 0.6-0.7MPa |
| Dimension | 3820(W) * 2060（L）* 1970mm(H) |
| Gross Weight | Appr.4500Kg |
| Handhole on Box Sides | Hand hole module size (150*300mm) |
| Glue Flap Crash | √ |
| Air Consumption | 90L/Min |

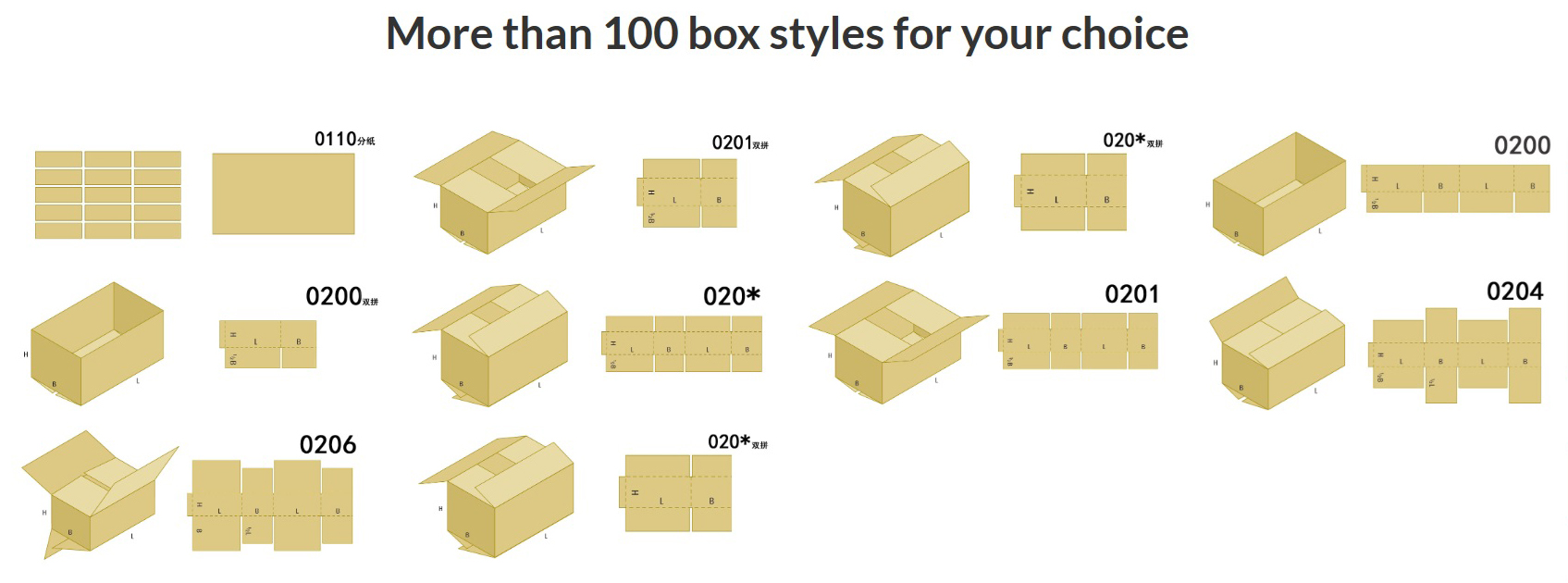

| Box Styles | More than 80 Fefco codes |
| All the above specifications are for reference only. The final interpretation right belongs to Qingdao Aopack On Demand Packaging co., Ltd. |
|

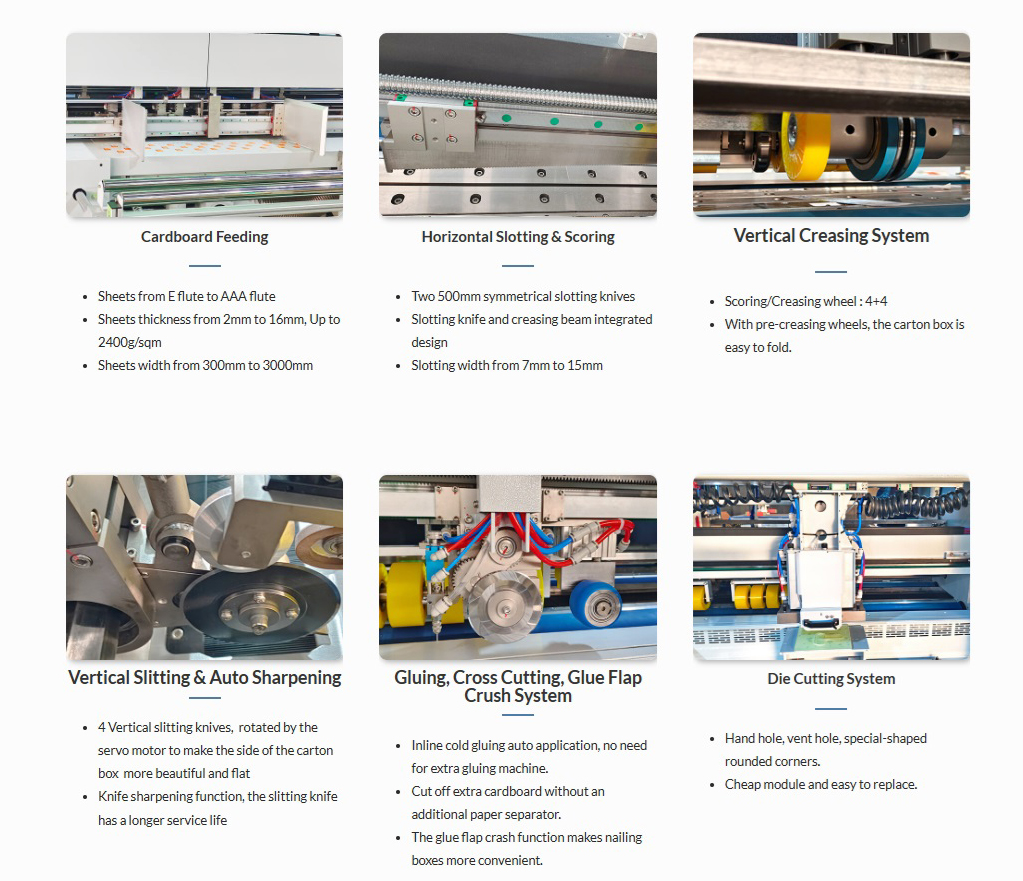

Major Functions Of Heavy Duty Box Maker BM3000-HD
