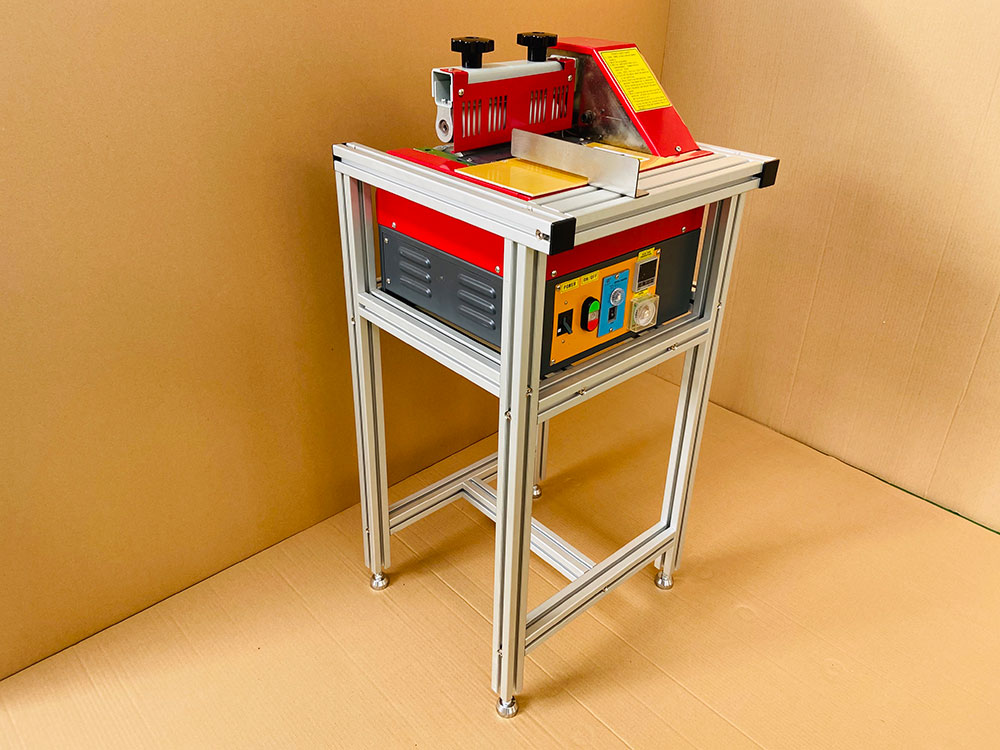

Hot Melt Glue Machine 200 - HMG200
|
The Hot melt glue machine 200 is designed and manufactured for the complement of AOPACK world-leading short run box making machine BM2508-Plus. The HMG200’s simple-designed structure provides quick and efficient processing of generally any size of corrugated boxes. Eliminating the need to pick up heavy glue guns frequently, the pre-melt offers significantly faster processing whilst reducing the risk of injury. By using hot-melt granules, it is easy to accomplish a consistent amount of glue to every box. As a result, the raw material costs and the amount of glue used are greatly reduced.
|
How to use
A proper amount of hot-melt adhesive is applied to the exactly whole surface of the glue flap, creating the best contact surface giving excellent adhesion all the time. The glue tank heats the hot melt granules, which can provide a constant supply of glue to the spinning wheel, only need for regular refilling, allowing for quick, continuous processing.
Main function
|
 |
Specification
| Power Supply | 220V±10% |  |
| Motor Power | 60W | |
| Heating Power | 1500W | |
| Glue Width | Up to 200mm | |
| Melting Speed | 2Kg/h | |
| Glue Viscosity | 1000-20000 CPS | |
| Operating Temperature | ≤250℃ | |
| Cardboard Thickness | 0.7-20mm | |
| Glue Container Volume | 2L | |
| Dimension | 500(W) * 485（L）* 1080mm(H) | |
| Gross Weight | Appr. 50Kg | |
| All the above specifications are for reference only. | ||
