Spare Parts

For the cardboard box making machine, the whole machine is not easily broken, but the spare parts will need to renew regularly. If the spare parts are not easy to find in the market, it means you may meet the after-sales problems.

Because your machine won’t be only used for several years, so if the spare parts can’t be supplied on time, your machine may not work smoothly. So the price and after-sales service is an important thing to think about before we want to buy the paper box making machine.

Usually, Aopack will provide two pieces of cutting knives and combs, which will be shipped together with the machine. If you need more spare parts, and it’s inconvenient to buy from your country; we can help you to buy from China and then ship it to you.

Spare Parts List

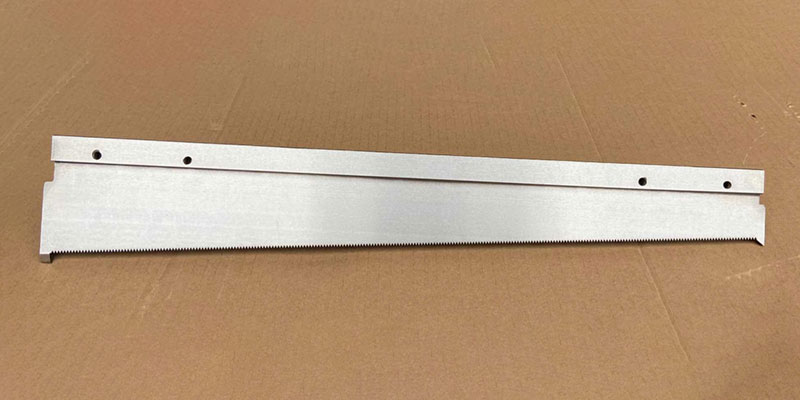

500 Slotting Knife

Available for: BM2508, BM508-Plus
Feature: When the machine is equipped with a 500mm slotting knife, the maximum slotting width is 500mm. The maximum scoring line width is 1715mm.

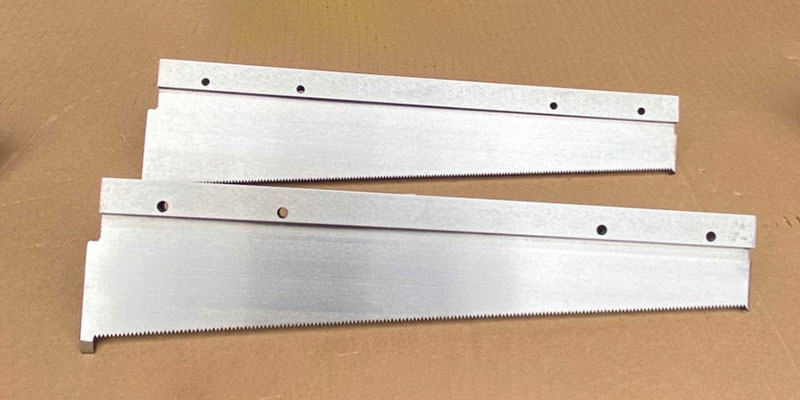

350 Slotting Knife

Available for: BM2508, BM508-Plus
Feature: When the machine is equipped with a 350mm slotting knife, the maximum width of slotting is 350mm. The maximum scoring line width is 2015mm.

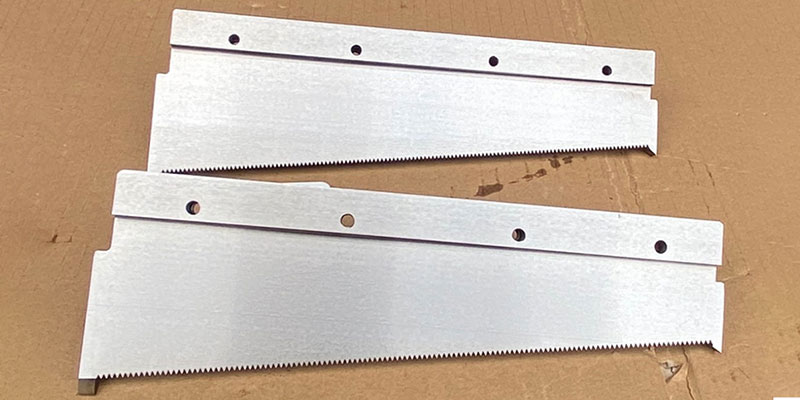

250 Slotting Knife

Available for: BM2508, BM508-Plus
Feature: When the machine is equipped with a 250mm slotting knife, the maximum width of slotting is 250mm. The maximum scoring line width is 2215mm.

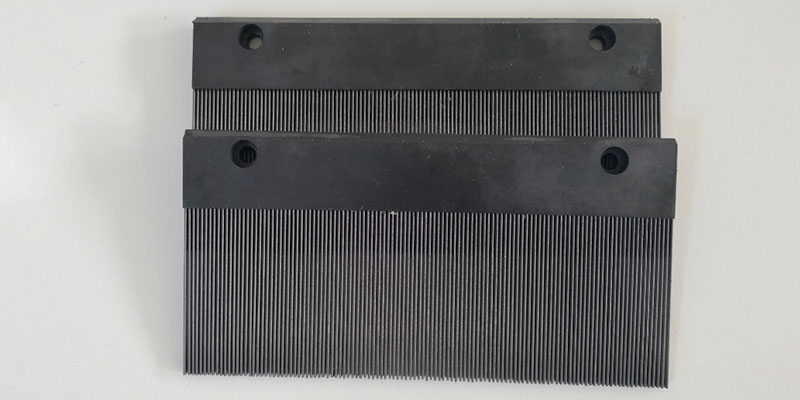

Comb Knife

Available for: BM2508, BM508-Plus
Feature: Length 200mm, width 100mm, it’s used to support the cardboard, cooperate with the slitting knife, slitting the corrugated paper.

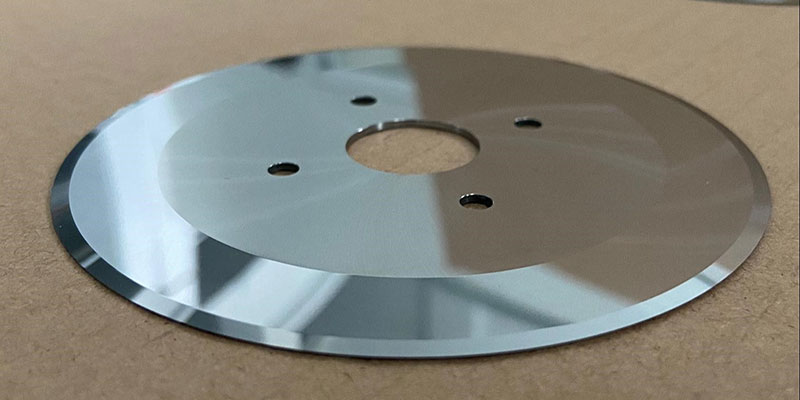

Rotary Knife Blade

Available for: BM2508, BM508-Plus
Feature: 100 mm outside diameter, 20 mm mounting holes, we mount it in the machine for slitting and cross-cutting cardboard.

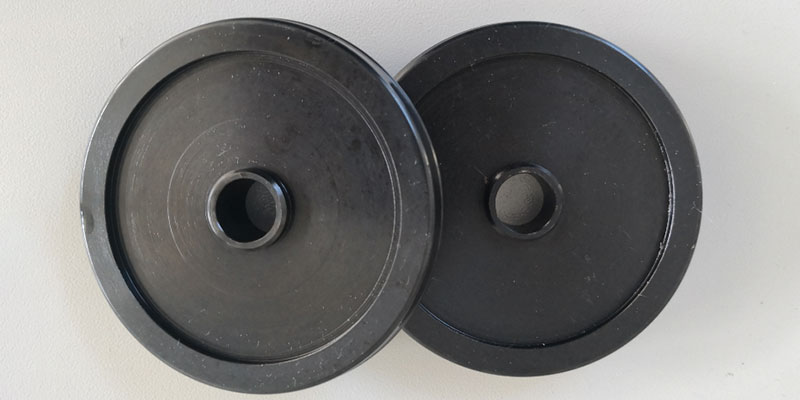

93 Crimping Wheel

Available for: BM2508, BM508-Plus
Feature: 93mm outside diameter, mounted in the equipment for longitudinal creasing/scoring corrugated cardboard.

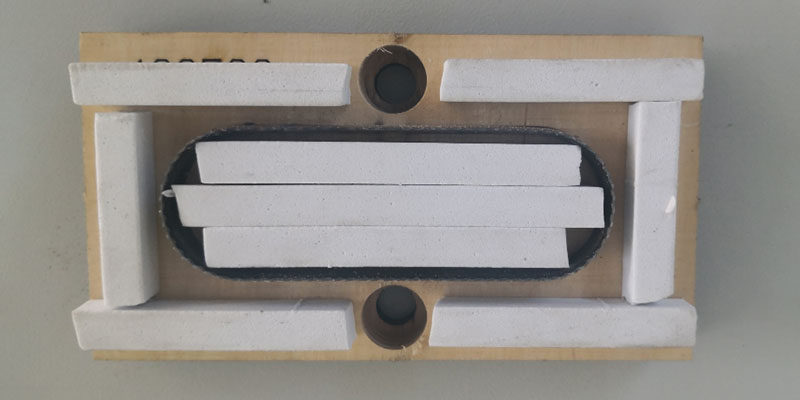

Hand Hole Mould

Available for: BM2508-Plus
Feature: 90x30mm perforated molds, full and half hole types are available.
