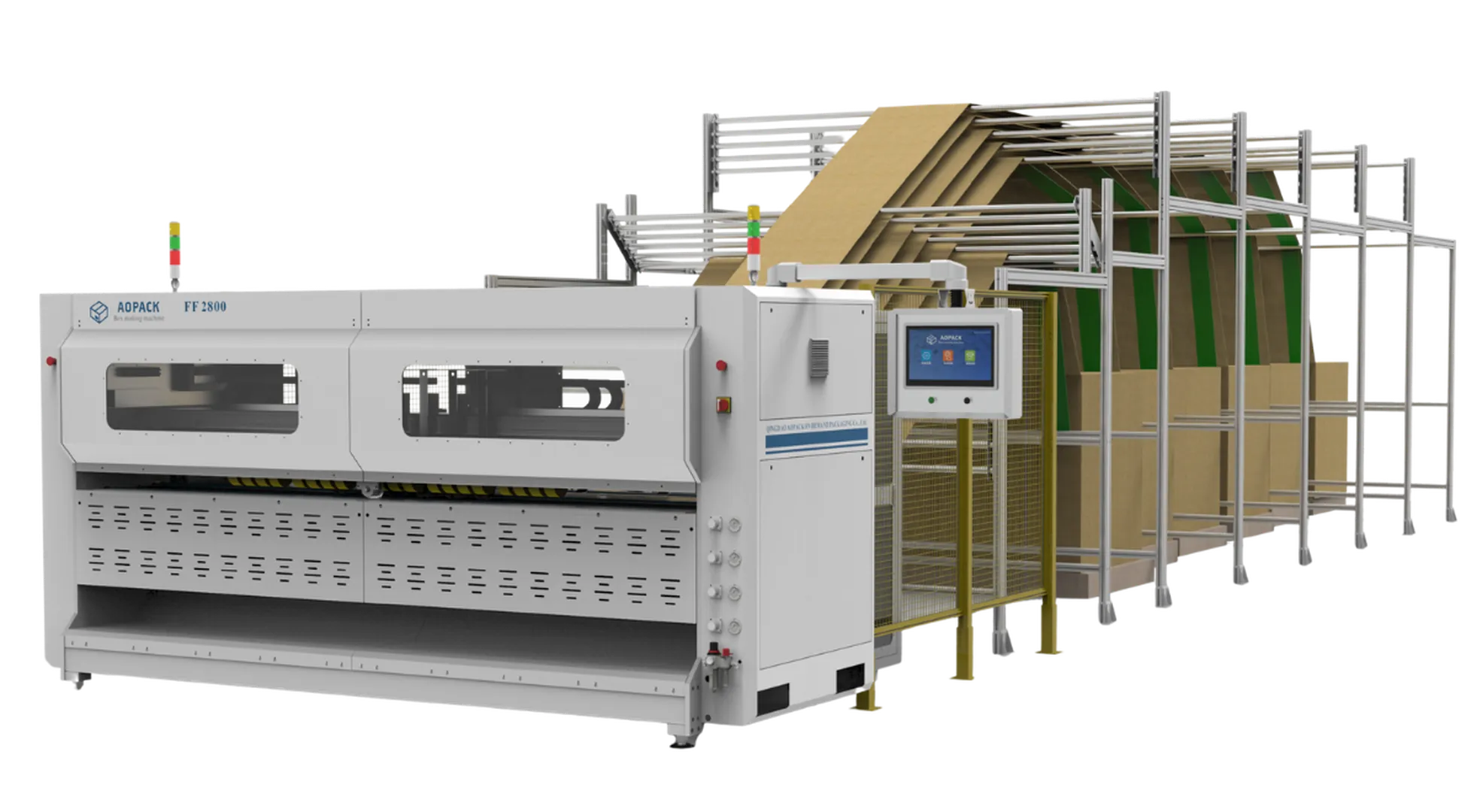

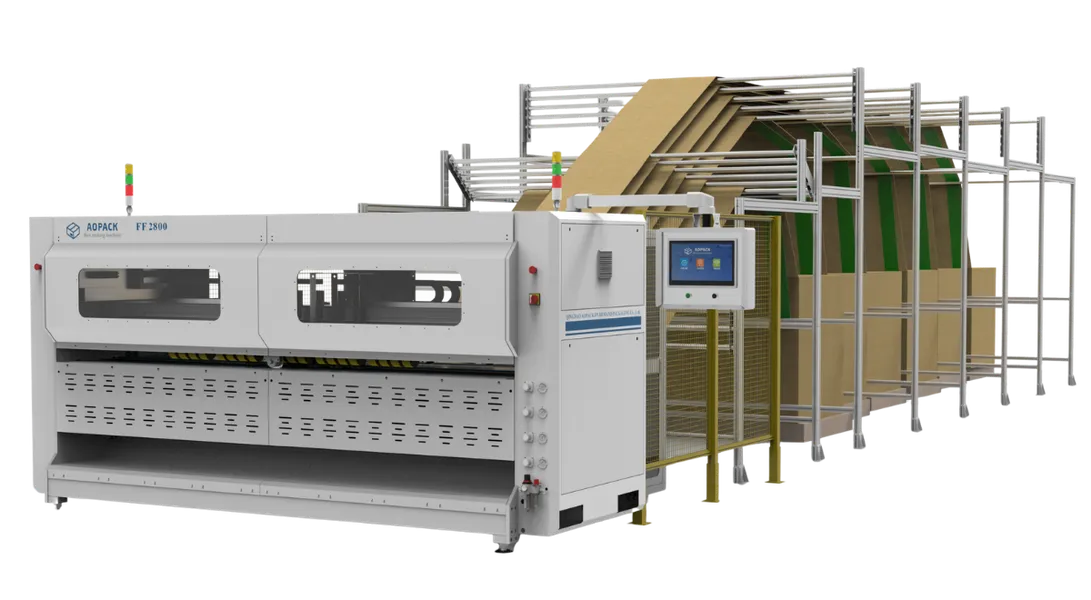

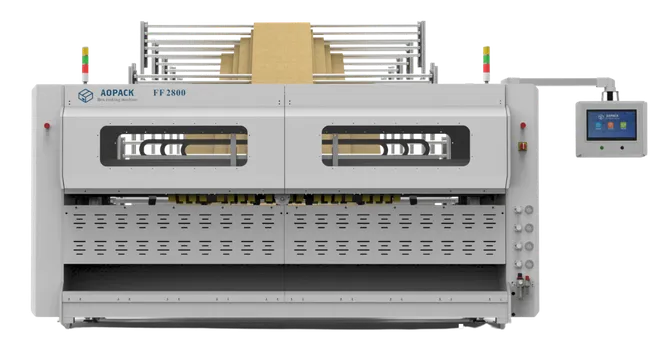

FF2800 Fanfold Cardboard Box Making Machine
BM FF 2800
Designed for on-demand and customized packaging, the FF2800 provides a complete box-making solution that allows manufacturers to produce exactly the boxes they need.
GET A PRICE quote
BOX MAKER MACHINE
BM FF2800 HIGHLIGHT

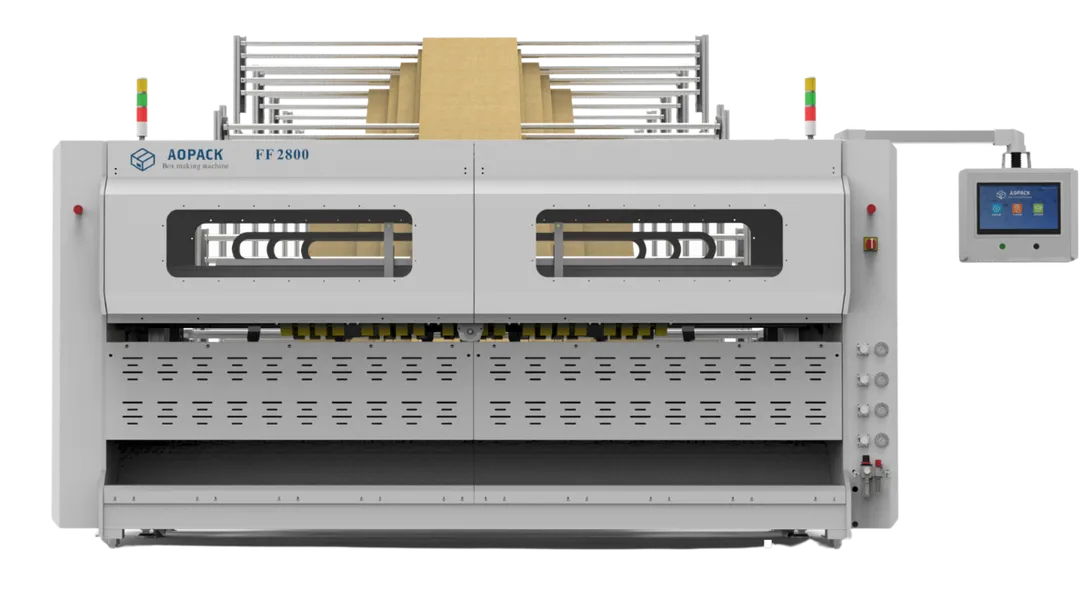

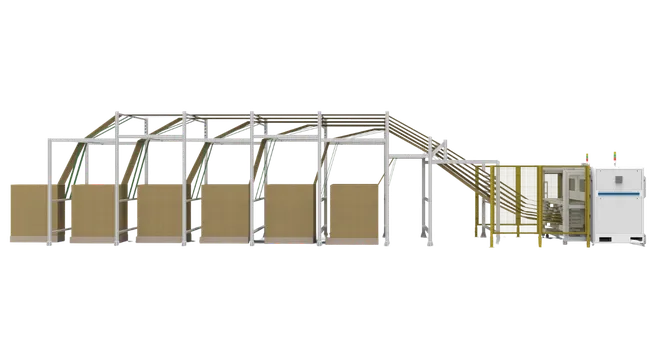

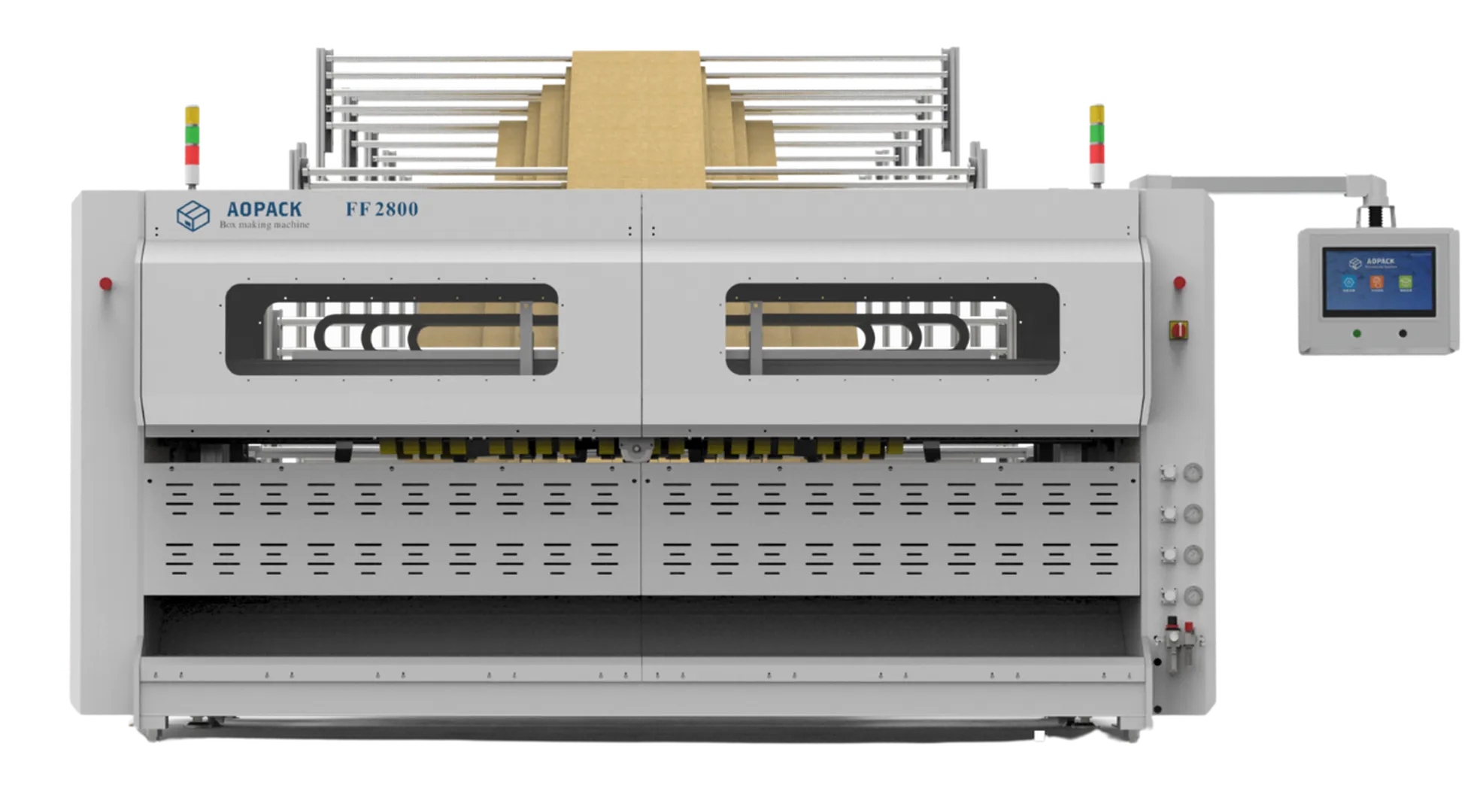

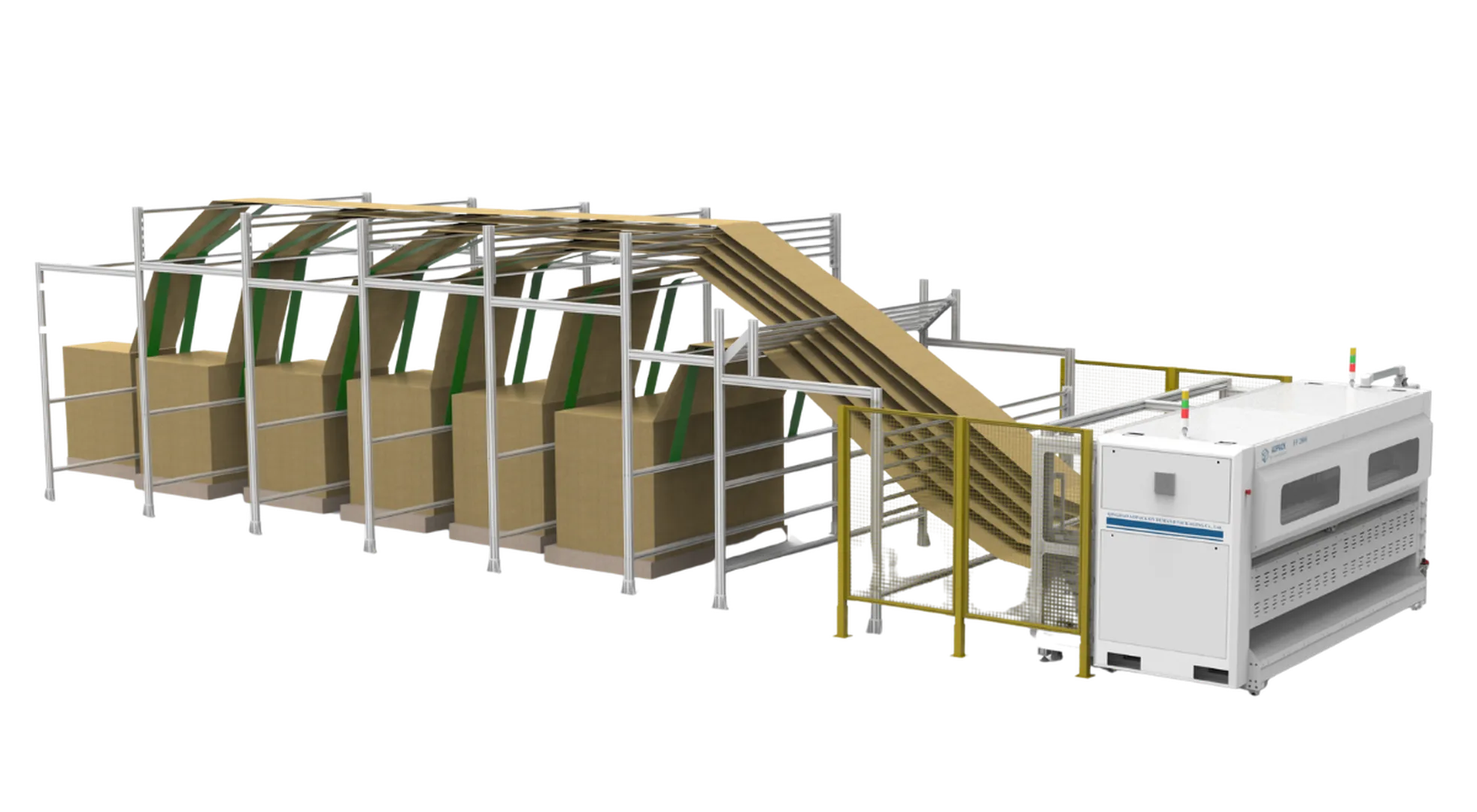

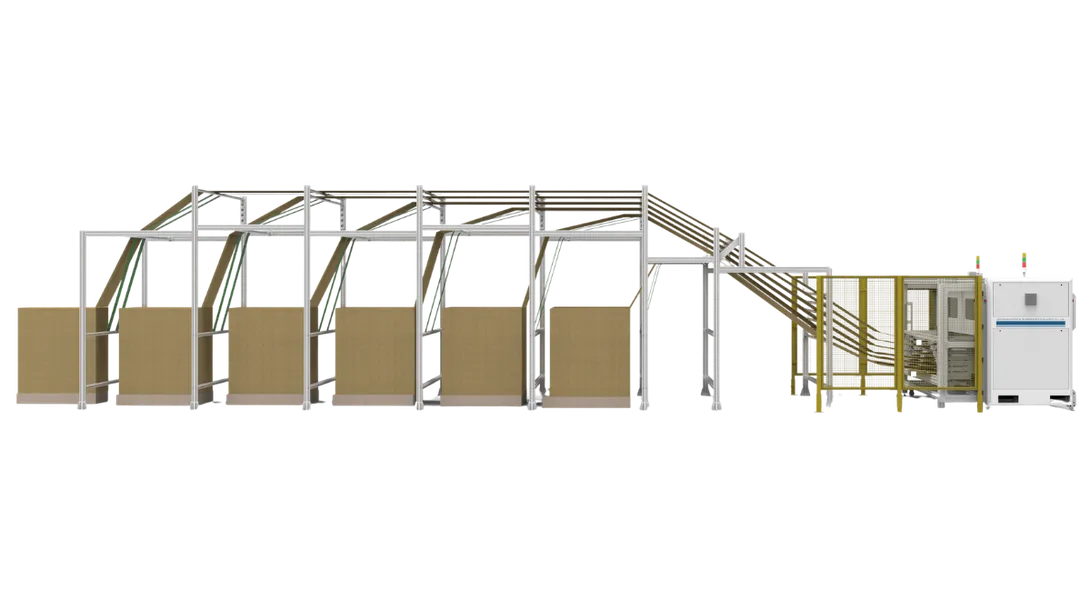

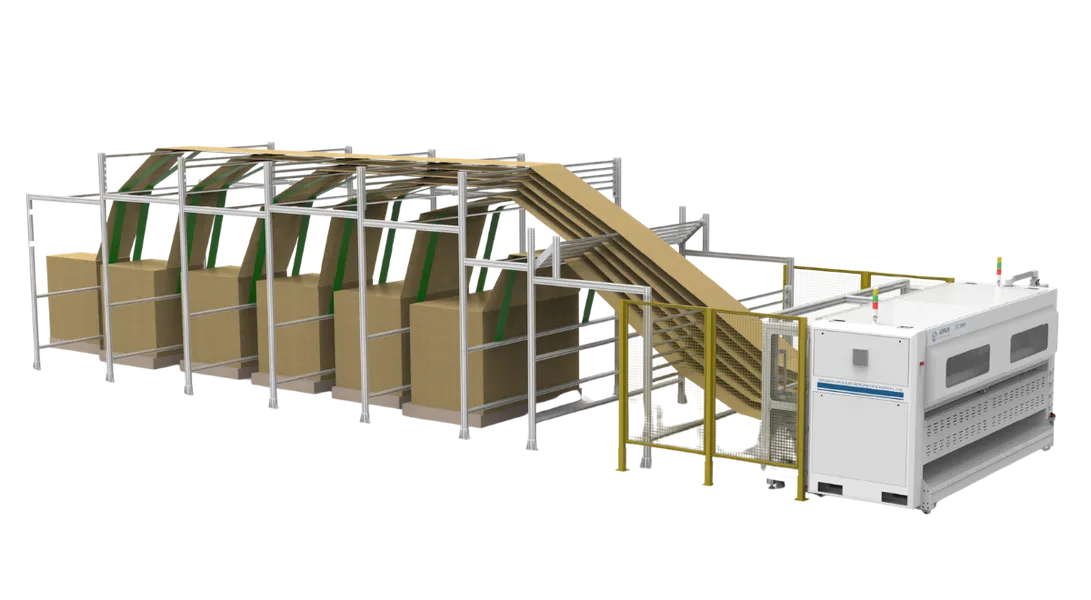

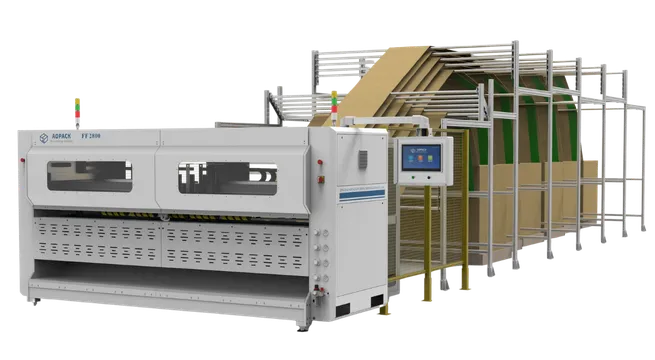

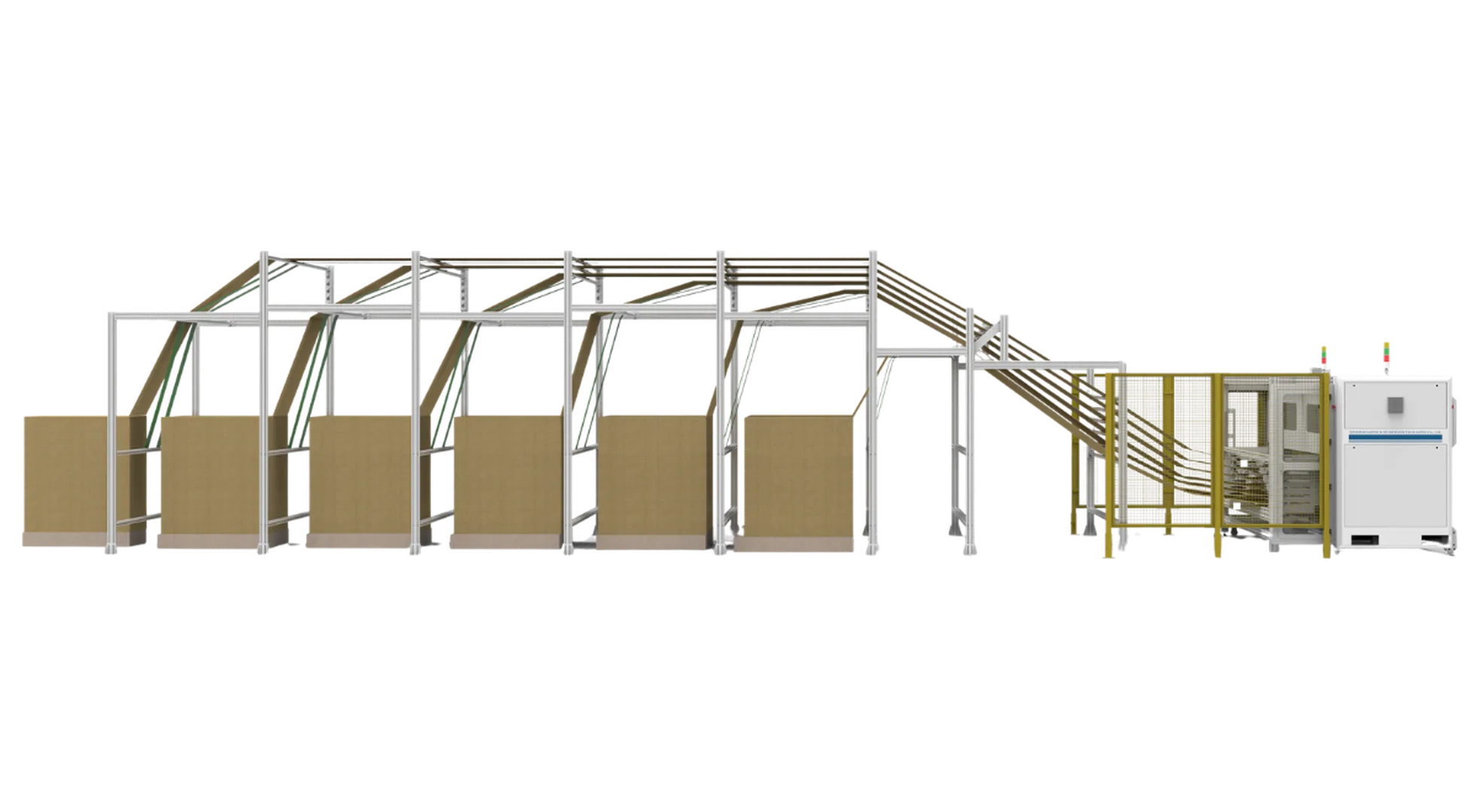

The AOPACK FF2800 Fanfold Cardboard Box Making Machine represents the next generation of corrugated box production technology. The machine can process up to six different fanfold cardboard stacks with automatic material selection, providing exceptional production flexibility without the need for manual material changes. The FF2800 integrates multiple processing functions into a single compact system, including slotting, scoring, creasing, slitting, and trimming, enabling complete box production in one continuous operation. Designed for on-demand and customized packaging, the FF2800 provides a complete box-making solution that allows manufacturers to produce exactly the boxes they need, whenever they need them. This eliminates dependence on pre-manufactured box inventories, reduces storage requirements, and enables packaging production to be synchronized directly with manufacturing, improving efficiency while minimizing waste and operating costs.
Full Automatic Operation
Up to 6-12 pieces/minute
Max. Board Width 2800mm
Servo Motor Control
Major functions

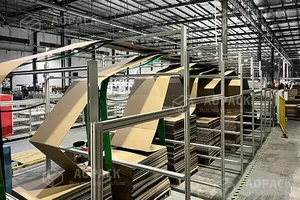

Cardboard feeding
Cardboard E / B / C / AB/ BC / BE / BCE flute, thickness ranges from 1.5 mm to 10 mm, with a maximum weight of up to 1350 g/m2, width 500 mm to 2800 mm.
First cross cutting
Cuts corrugated cardboard to the required length.
Slotting and scoring
Used for slotting and creasing corrugated cardboard.
Creasing and cutting
The machine is equipped with 6 integrated slitting knives and 6 creasing wheels. Each knife is driven by an independent servo motor for precise and flexible operation.
Second cross cutting
Cuts cardboard to the required length.
Optional functions

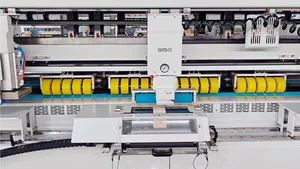

Inline Flexo Printing Unit
One-color printing using high-quality flexo printing technology. Up to two printing modules can be installed on the machine. Maximum print size: 500 × 300 mm (single module) or 500 × 200 mm (two modules).
Inline gluing
Inline application of dispersion adhesive during cardboard processing allows immediate box closing and stacking without any
additional operation.
Order management system
With a changeover time of as little as 1 second, the machine can be directly integrated with ERP systems, enabling fully automated production workflows.
Specification
Cardboard typeFanfold 3/5/7 Ply | Cardboard thickness1,5 - 10mm |
Material Density Range≤1350 g/m² | Min. Cardboard Size500 x 650 mm |
Max. Cardboard Size2800 mm x Unlimited Length | Slotting Knives2 * 500mm |
Slitting Knives6 pcs | Production Capacity6-12pcs/min |
Creasing Wheels6 pcs | Crossing Cutting Knife1pc |

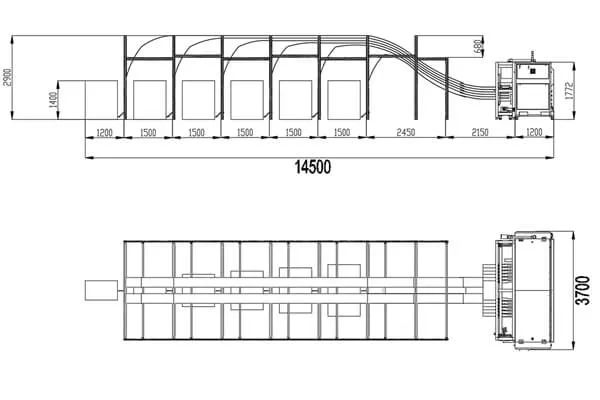

Machine Size3 700 x 1 200 x 2 030 mm (WxLxH) | Machine Weight3 100kg |
PowerAppr. 5,5kW | Box Styles FEFCO50+ |
Air Pressure0.6-0.7Mpa |

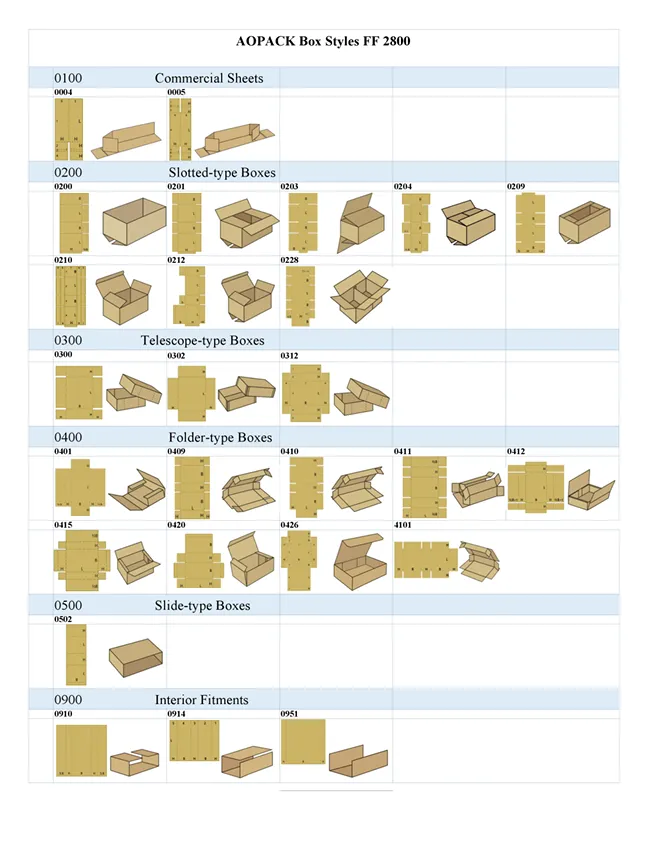

BOX MAKING MACHINE – BOX STYLES LIST
Gallery
