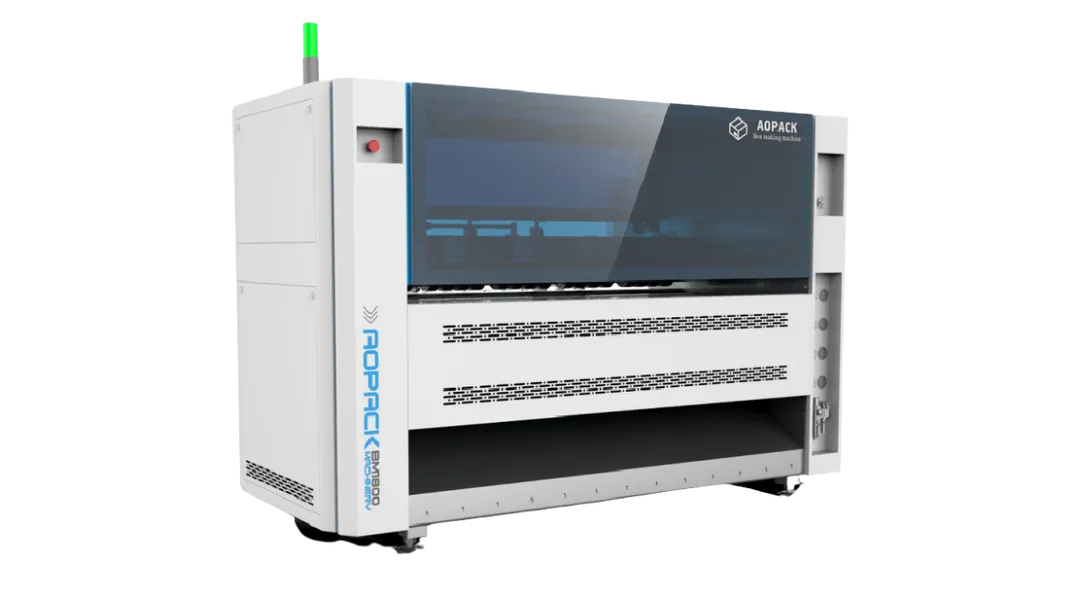

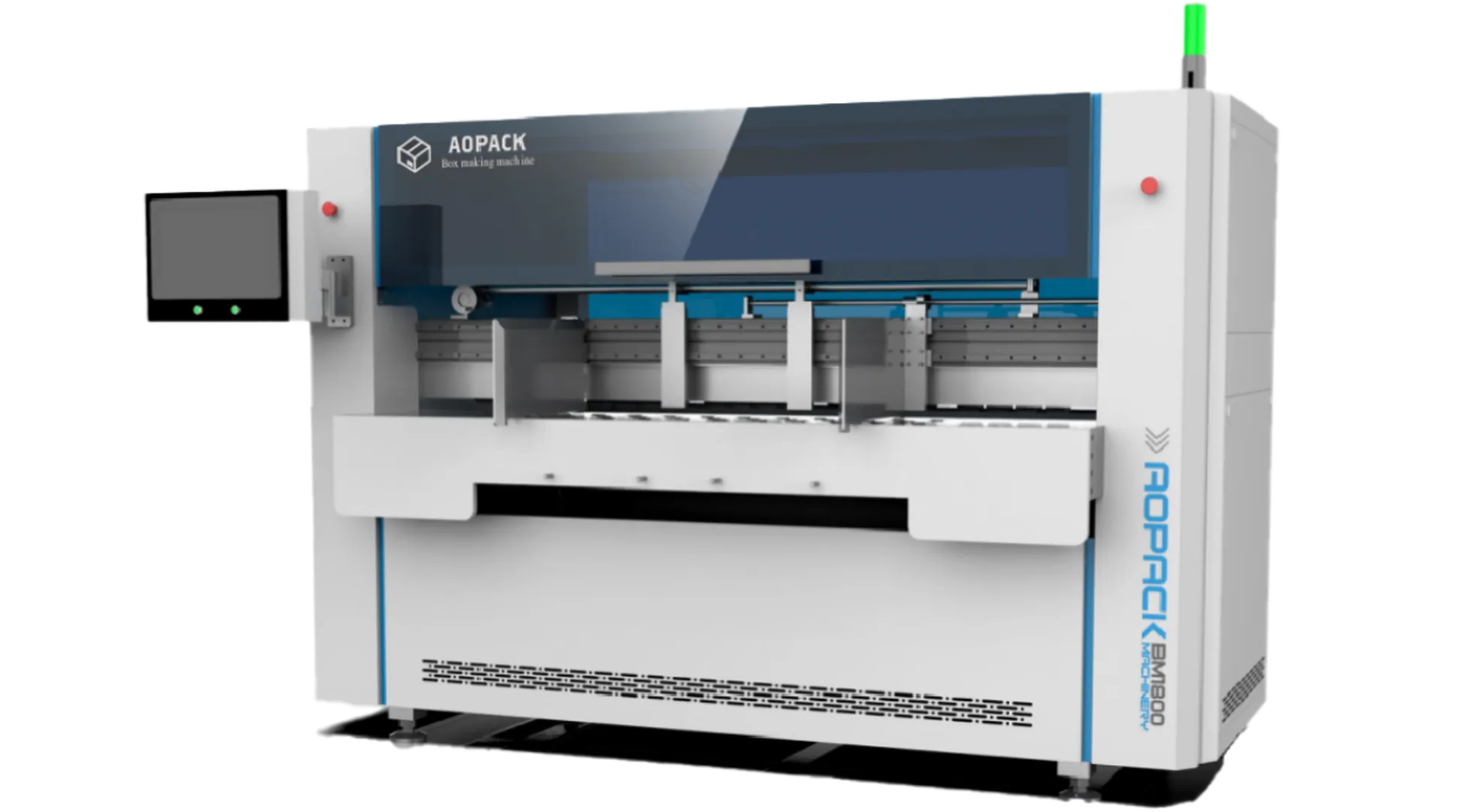

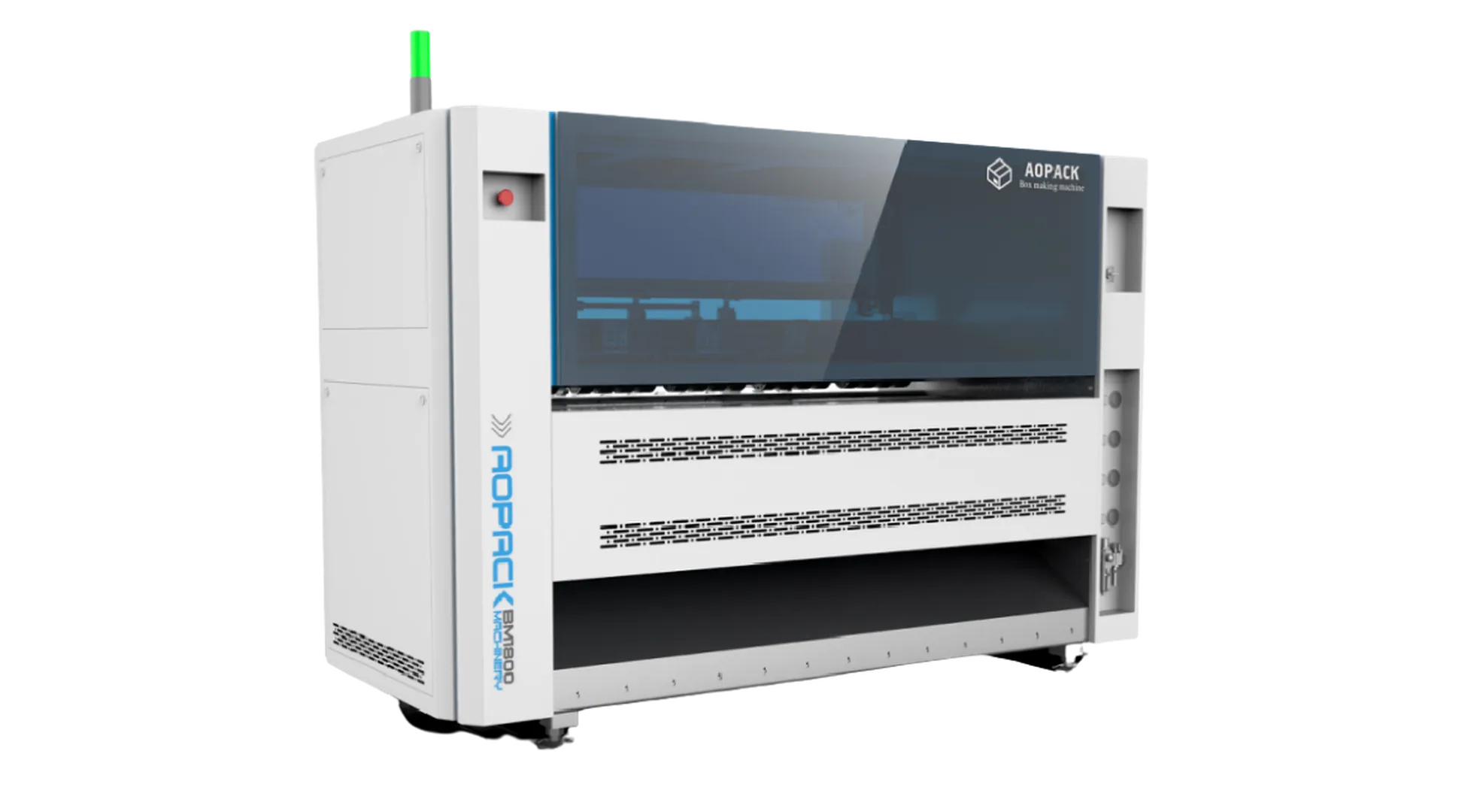

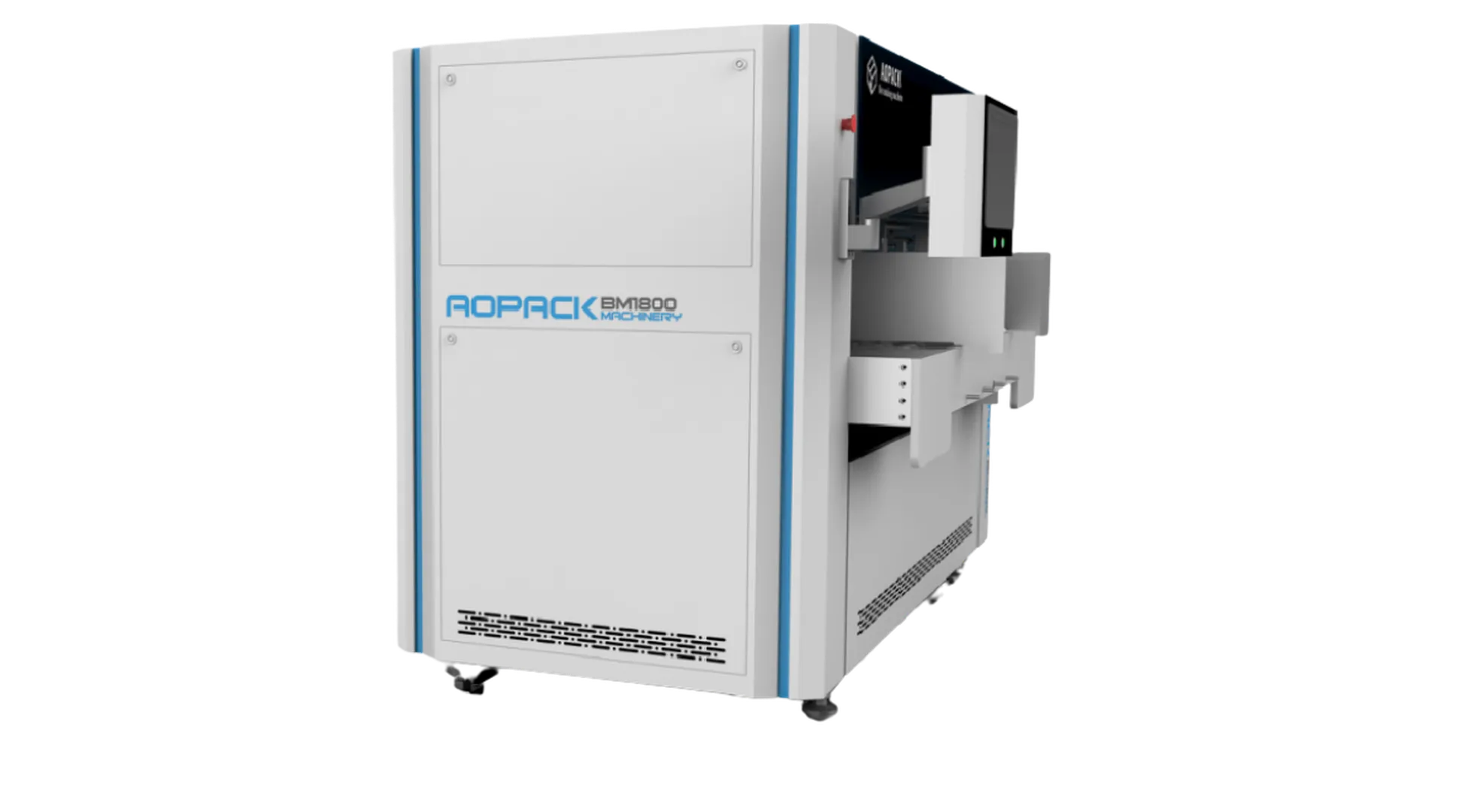

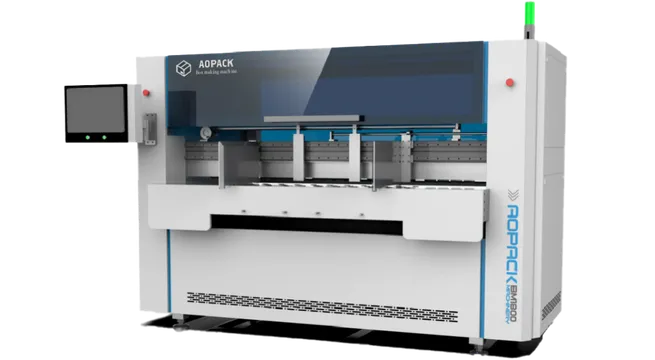

Heavy Duty Corrugated Box Maker Machine
BM 1800-Mini
Highly cost-efficient AOPACK box maker designed for fast, flexible, and fully automated on-demand corrugated box production with minimal setup time and low operating costs.
GET A PRICE quote
CORRUGATED BOX MAKER MACHINe
BM 1800-Mini hIGHLIGHT
BM 1800-Mini is a compact and fully automatic multifunctional box maker with ultra-fast 1–6 second order changeover. It processes customized corrugated box styles in a single pass, supports inconsistent creasing, and handles cardboard width up to 1800 mm with unlimited length. Ideal for short runs and low to medium volume production.
Full Automatic Operation
Up to 600 pcs/hour
Max. Cardboard Width 1800mm
Servo Motor Control
Major functions
Carboard feeding
Cardboard from E flute to AAA, thickness
ranges from 2 mm to 10 mm, with a maximum weight of up to 1200 g/m2, width 140 mm to
1800 mm.

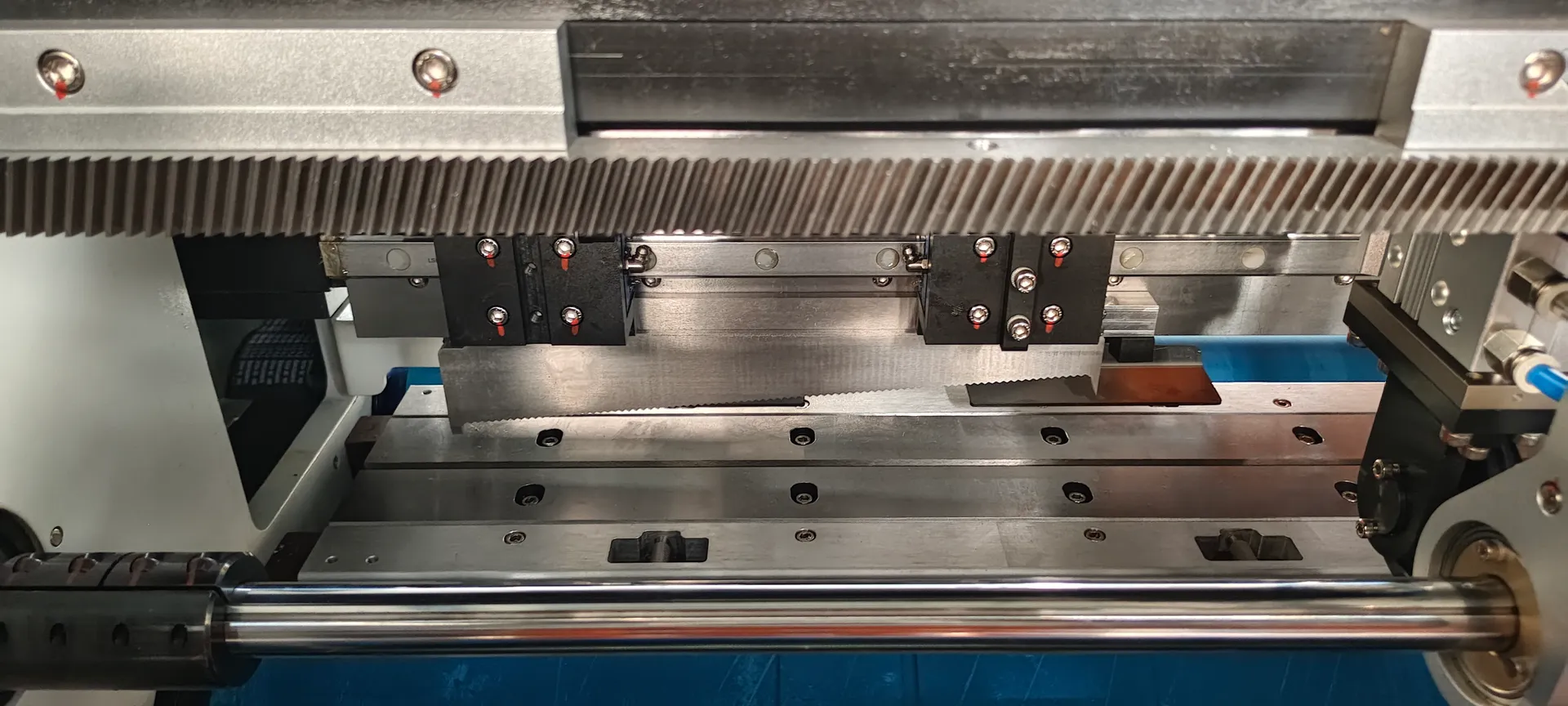

Horizontal Slotting & Scoring
Two 350mm symmetrical slotting knives.

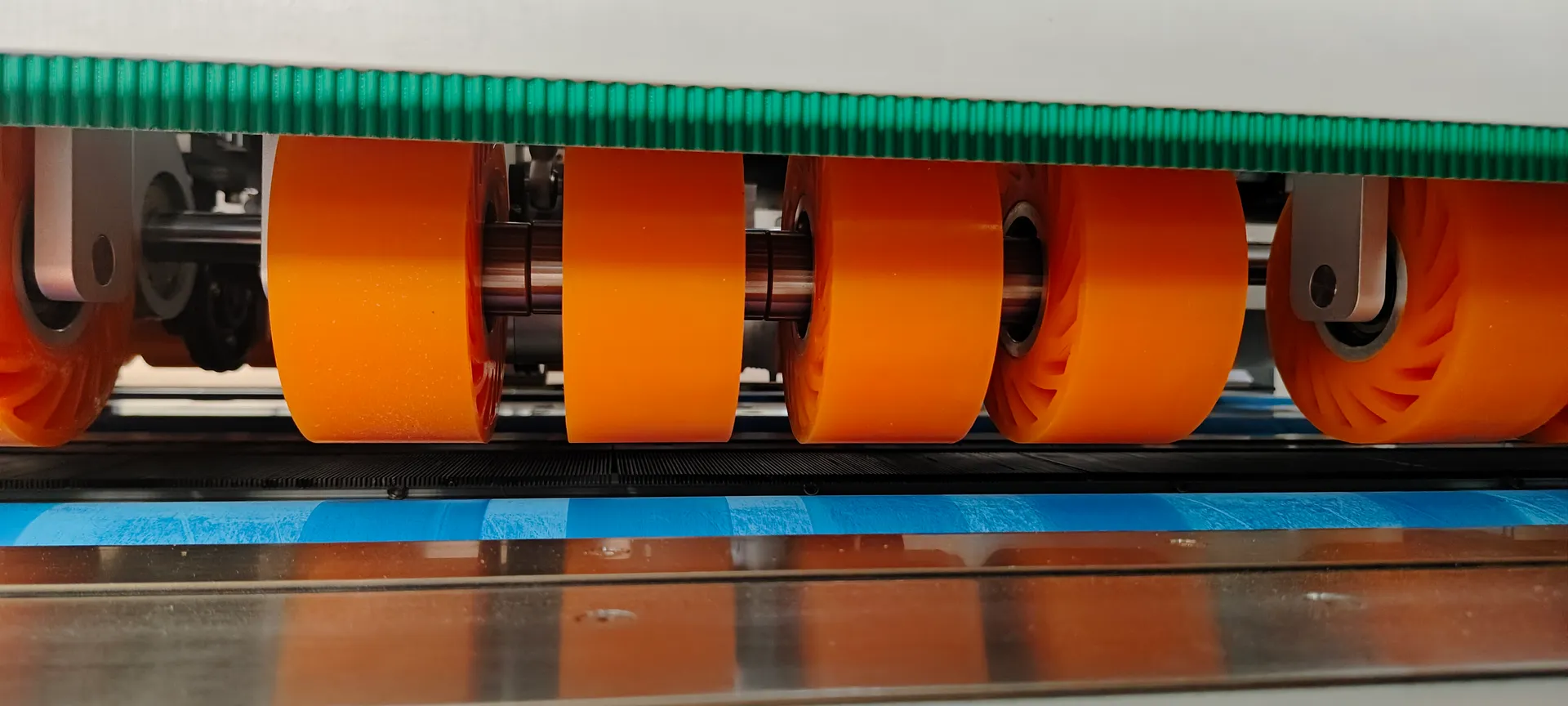

Vertical Creasing System
Six vertical creasing wheels, standard distance is 20mm.
Slitting Knives and Cross Cutting System
Six slitting knives and one cross cutting knife.
Optional functions

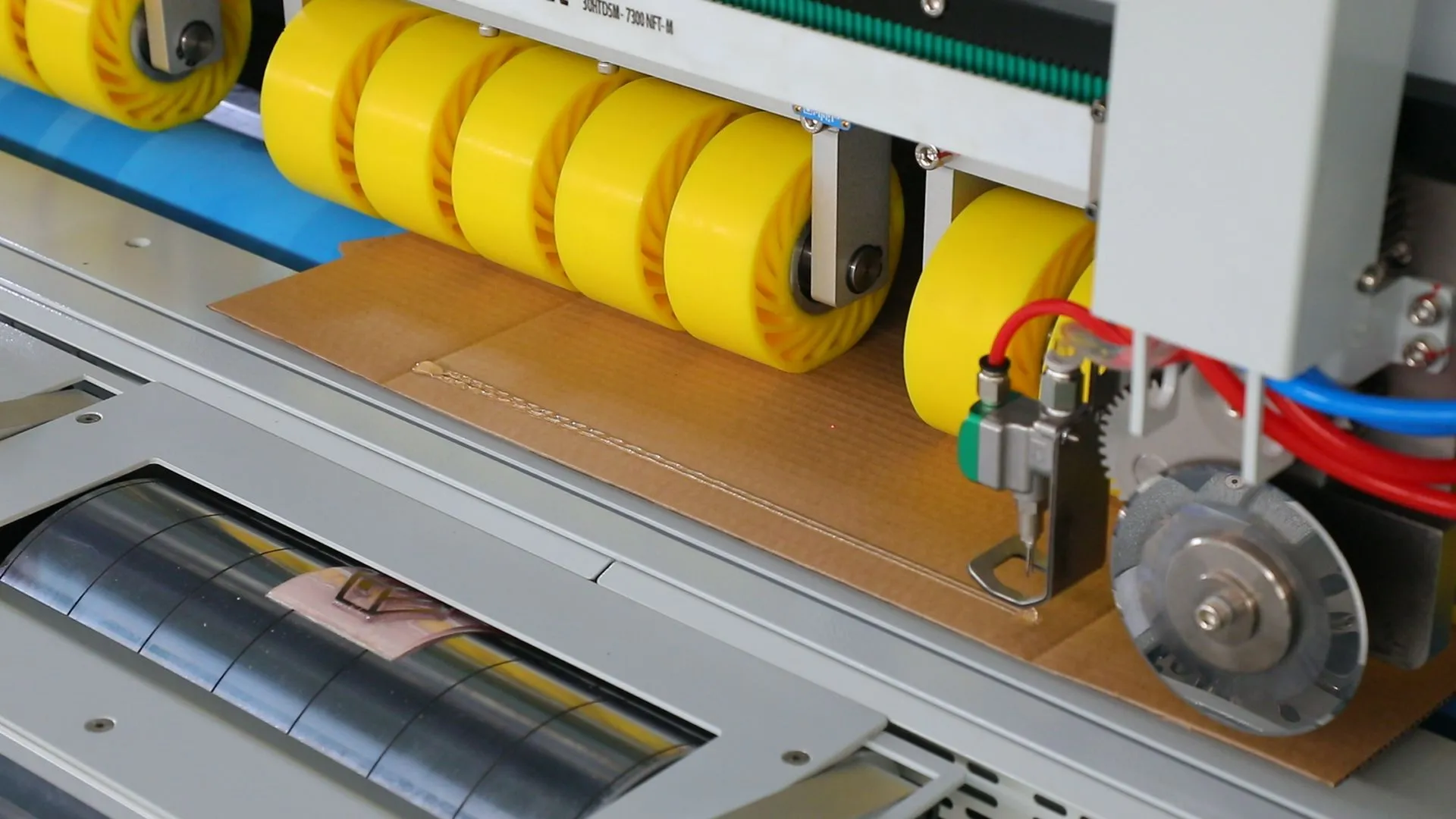

INLINE GLUING
Inline application of dispersion adhesive during cardboard processing allows immediatebox closing and stacking without any additional operation.

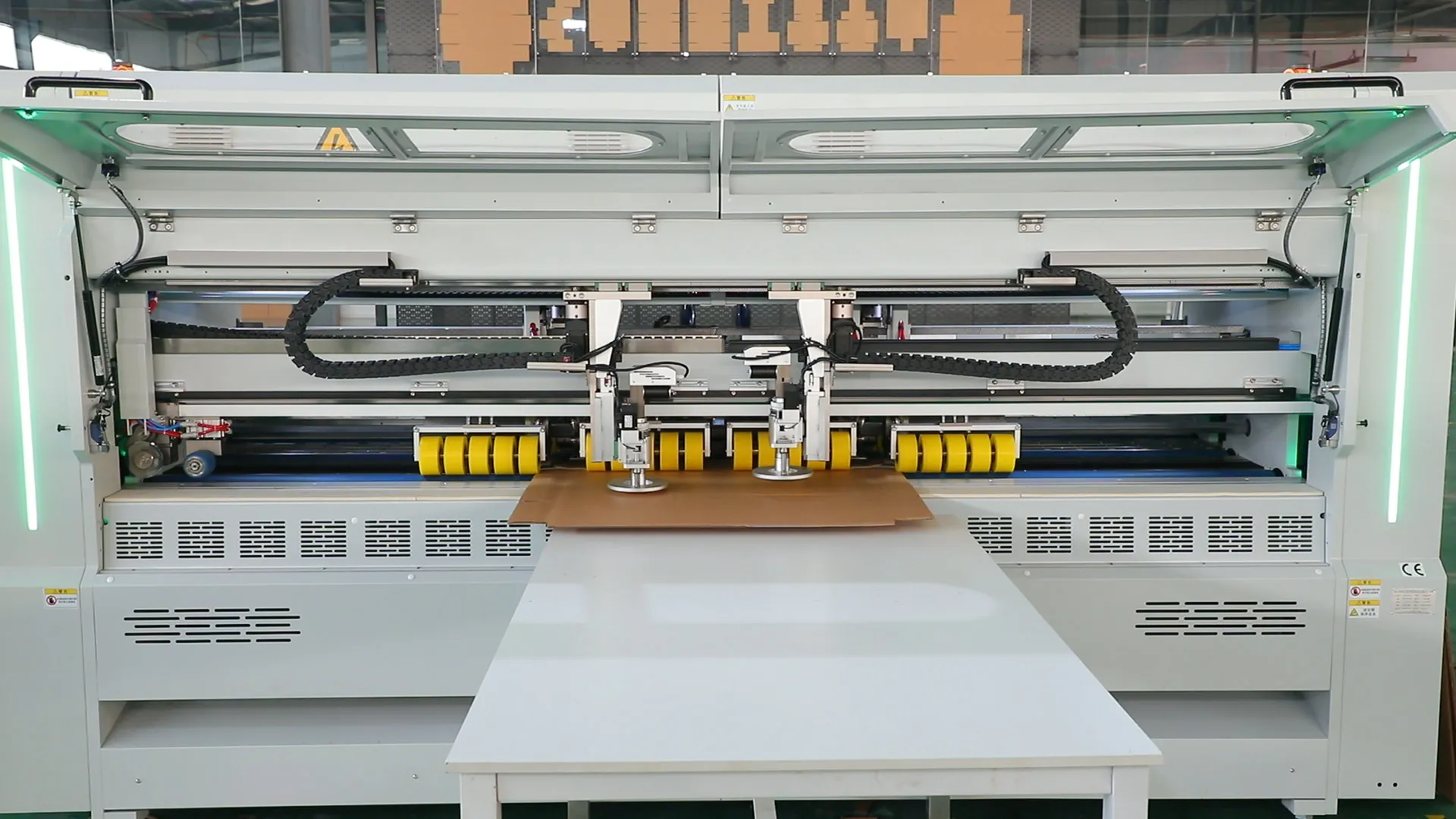

Vibrating knives
Capable of cutting round holes, rectangles, slots, curves, and other irregular shapes without the need for molds.
Specification
ModelBM1800-Mini | Cardboard Thickness2 - 12 mm |
Cardboard Density Range≤1400G/M2 | Min. Cardboard Size140 x 600 mm |
Max. Cardboard Size1800 mm x unlimited length | Production Capacity400-600 pcs/hour |
Slitting Knives6 pcs | Creasing Wheels6 pcs |
Cross Cutting Knives1 pc | Glue Flap CrushingNot available |

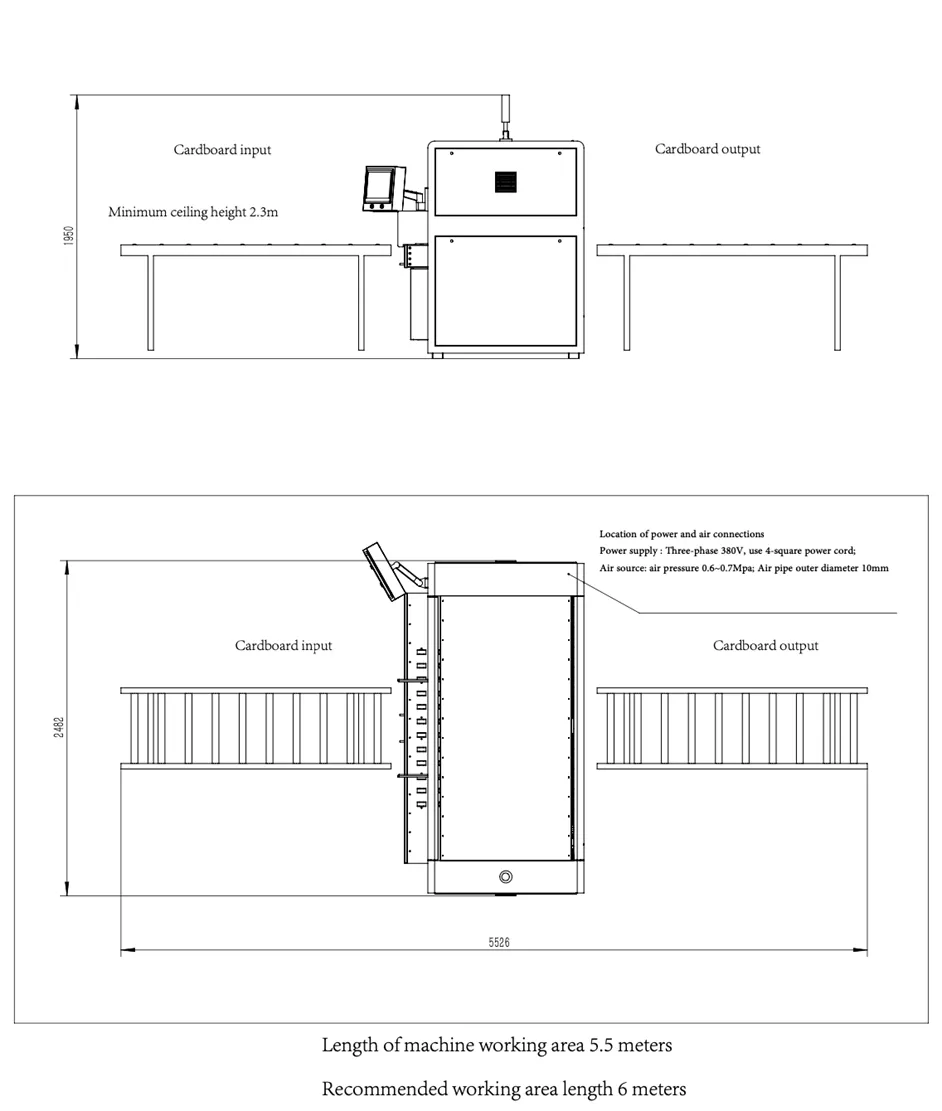

Machine Size2500 x 1500 x 2030 mm | Machine Weight1848 kg |

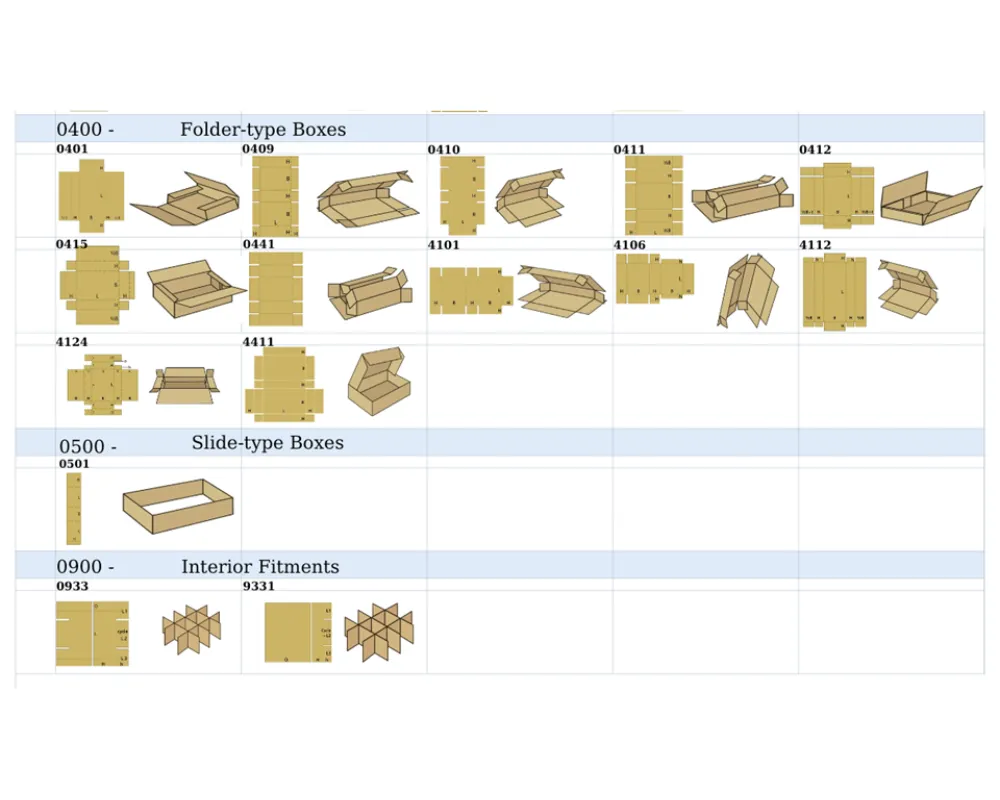

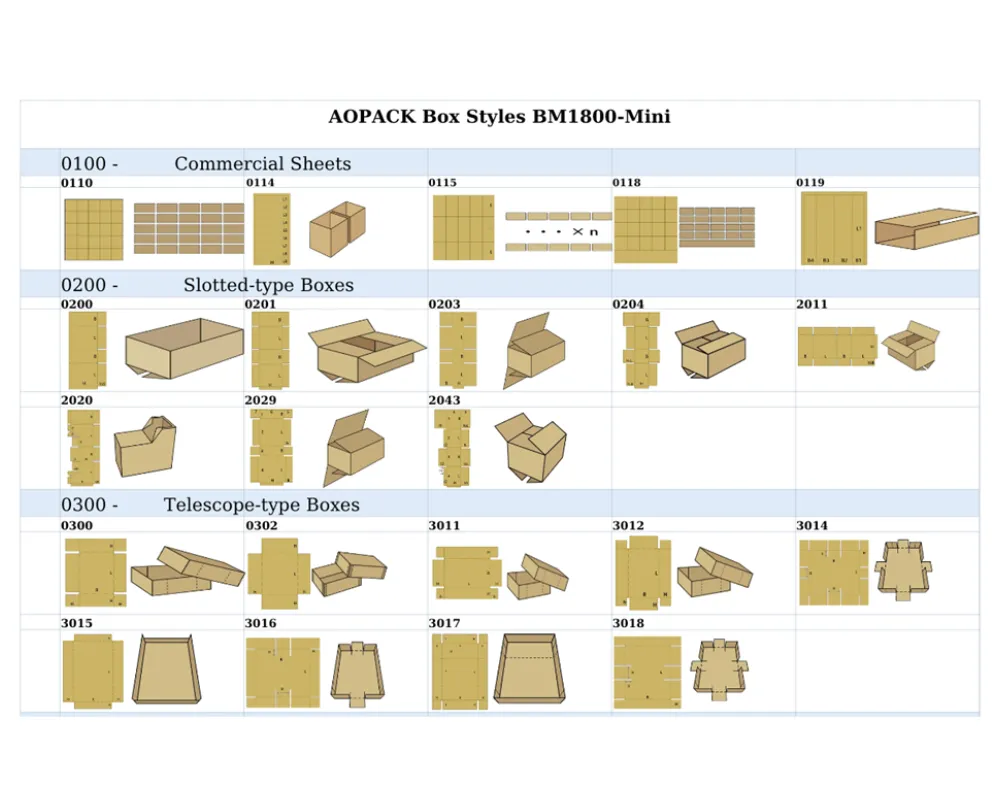

BOX MAKING MACHINE – BOX STYLES LIST
Gallery
